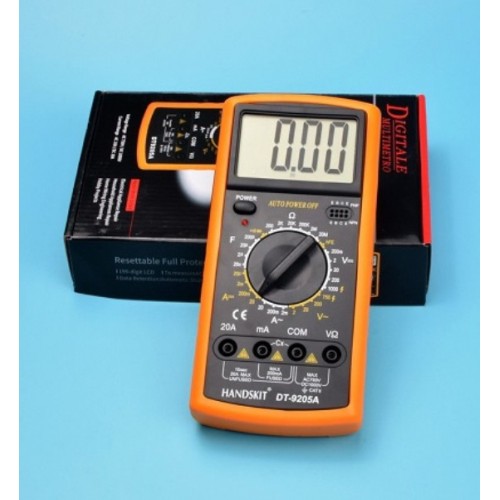

Multimeter DT-9205A

This Digital multimeter is a kind of convenient operation, accurate reading, complete function, small size, easy to carry and use battery as power, handheld and large LCD screen multimeter, 3 1/2 digits display , can be used to measure DC voltage/current, AC voltage/current, resistance, capacitance testing, diode and transistor HFE test and on-off circuit, etc. Good for engineering design, laboratory, production test, factory service, field operation and industrial maintenance CityTech BD

Diode to test.
Triode will magnify times.
it will beep when it turn on/off.
Non-contacting voltage test.
input the wrong pen will make the sound/light waning.
Data retention,Automatic shutdown,Manual range.
Low voltage will be prompted.
Voltmeter Input Impedance Measuring:10Ω CityTech BD

31/2 maximum display: 1999
DC voltage: 200mV, 2V, 200V, 1000V
AC voltage: 2V, 200mV, 200V, 750V
DC current: 20uA, 200uA, 2mA, 20mA, 200mA, 2A, 20A
AC current: 20uA, 200uA, 2mA, 20mA, 200mA, 2A, 20A
Resistance: 200Ω/2K/20K/200K/2M/20M ±(1.0%+2)
Capacitance: 2nF/20nF/200nF/2uF/20uF/200uF ±(3.0%+2)Power: 9V battery(included), NEDA 1604 or 6F22
Length: approx 18.5cm
Width: approx 9cm
Thickness: approx 3cm
Weight: appro x359g
Material of the item outside: flame retardant engineering plastics CityTech BD

1 x DT9205A Digital Multimeter
2 x Test probe
1 x Instruction manual
