Module Size: approx. 130*52*46mm
Input Voltage: 8-60V
Input Current: 20A
Quiescent Operating Current: 15mA
Output Voltage: 12-83 V continuous adjustable
Constant Current range: 0.3-20A
Output Power: = input voltage * 10A
Operating Temperature: -40 ~ + 85 degrees
Operating Frequency: 150 KHz
Conversion Efficiency: 95% (efficiency and input, output voltage, current, pressure difference)
Installation: column of 4pcs of 3mm
Connection mode: welding output (uses large current and pure copper wire)
Feature:

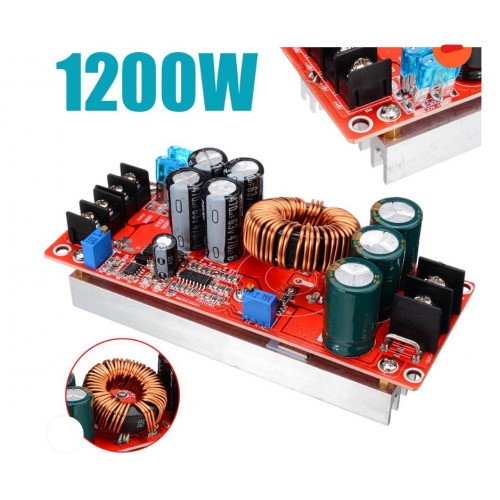

High power DC-DC boost constant current constant voltage adjustable power supply module
Over-current Protection: there is a certain range of error in the input of more than 30 a, Automatically reduces the output voltage. CityTech BD
Short circuit protection.
Fine workmanship and good performance.
Easy to use.
Long service life. CityTech BD
When using the impulse power supply, you must pay attention to the following points:
1. The voltage of the input power supply must be greater than 10 V.
2. When the power supply is used for the input power supply, the input power and the output voltage of the input power supply is the first to be discharged. Then choose upload the load. (You must make sure that the switching power supply has been working).
3. When the constant current mode is used to adjust the voltage, the constant voltage must be higher than the input voltage. Do not use the form of short-circuit output current, the circuit structure of the boost module can not be adjusted as a short circuit. CityTechBD
CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD
Package included:
1 x Power Supply Module
Note:
Please allow 1-5mm errors due to manual measurement.
