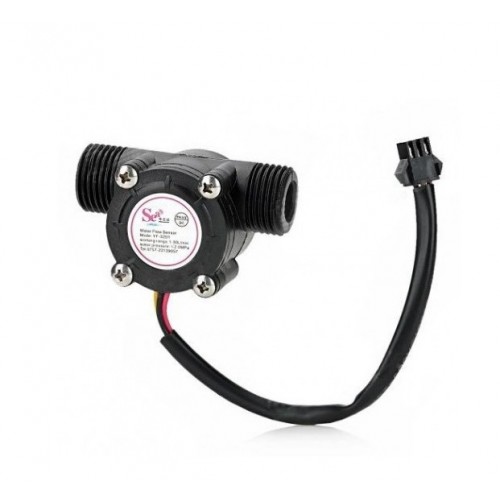

YF-S201 Hall Effect Water Flow Sensor

Description

This is YF-S201 Water Flow meter Measurement Sensor with 1-30Leter/min Flow Rate in black colour. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. CityTechBD

Connection

Red wire: +5V
Black wire: GND
Yellow wire: PWM output

Features :

  1. The simple and compact module.
  2. Easy to Install.
  3. High Sealing Performance.
  4. High-Quality Hall Effect Sensor. CityTechBD
General Specification
ModelYF-S201
Working Voltage (V)5 ~ 18
Max current draw15mA @ 5V
Working Flow Rate (Liters/Minute)1 ~ 30
Operating Temperature range (℃)-25 ~ +80
Operating Humidity Range35% – 80% RH
Accuracy±10%
Maximum water pressure2.0 MPa
Output duty cycle50% +-10%
Output rise time (µsec)0.04
Pulses per Liter450
Output fall time (µsec)0.18
Outer diameter (mm)20
Intake diameter (mm)11
Outlet diameter (mm)11
Length (mm)62.5
Width (mm)36
Height (mm)35
Weight (gm)50
Shipment Weight0.089 kg
Shipment Dimensions9 × 6 × 6 cm

Package Includes :

1 x YF-S201 Water Flow meter Measurement Sensor with 1-30Liter/min Flow Rate – Black.
