Description: XH-M602 Battery Charger Control Module AC 220V Battery Charging Control Switch Protection Board
XH M602 Charging Module XH M602 Battery Charging Module Battery Charger Control XH M602 Module AC 220V Battery Charging Control Switches Protection Board

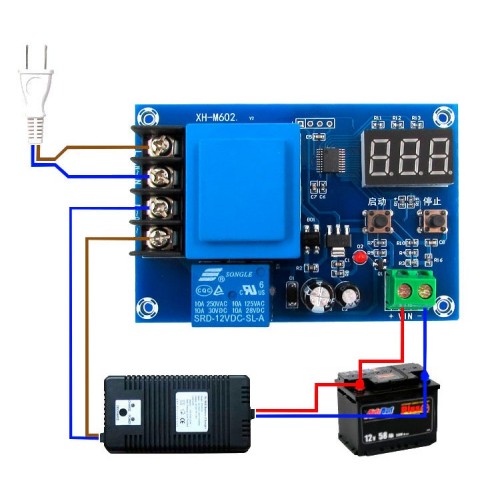

This prduct is suitable for Ac 220V battery charging control, and can set up the modes of charging voltage and stop charging voltage. Suitable for use in home charger, solar energy, Wind generator. Input Ac 220v in the IN end,
- This charge control module can automatically control charging and discharging to protect batter.
- LED power supply with power display is more practical.
- Wide range of applications, suitable for 3.7V-120V all lithium .
- Automatically cut off power to save power and extend service life of .
- The board has a bright 3-digit display with 0.1 accuracy shows the setting value.
- Condition: 100% Brand New
- Item Type: Protection Board
- Material: Printed Circuit Board
- Color: As Pictures Shown
- Input Voltage: 220 VAC
- Display Accuracy: 0.1 v
- Control Accuracy: 0.1 v
- Output Type: Output Switch
- Scope: 3.7V – 120V all lithium
- Voltage Error: + 0.1 v / -0.1 v
- Use: In the setting voltage value, start button play button raised, about stop button role to down key
- Item size:86 x 58 x 24mm
- Item weight:68g
Use: In the setting voltage value, start button play button raised, about stop button role to down key
- 1. Set the start voltage: Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
- 2. Set Stop voltage: Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
- 3. Setting Error: Energized state while holding down the start / stop button, digital display 888, which is the factory setting
- 1 x XH-M602 Battery Charger Control Module AC 220V Lithium Battery Charging Control Switch Protection Board Lead-Acid Battery XH M602
