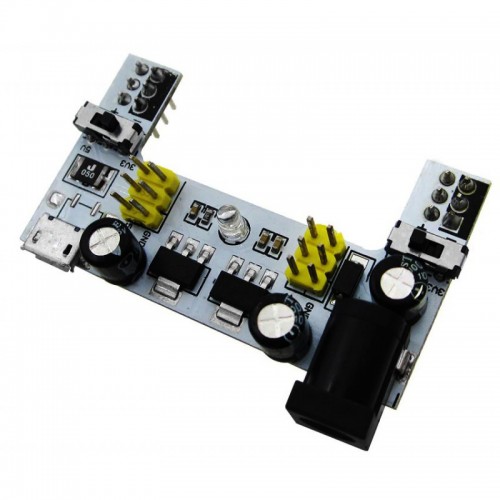

XD-42 Breadboard Power Supply 5V / 3.3V Micro USB


This Small and compact XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module can make your project easy and portable and you will not need to carry bulky power supplies with you. The module comes with a series diode, polarity reversal protection. The two-channel module can take DC 7V to 12V input through DC (Black ) Jack and can produce 3.3V and +5V on each separate channels. CityTech BD

The module is having a onboard Micro USB port to take input to the module. It also has an indicator LED to show power On/Off status and Voltage switching (between 3.3v or 5V ) button for switching the output voltage on the breadboard on both channels. It is a must-have product in your DIY kit for experimenters those have to test/prototype electronic circuits on a breadboard. CityTech BD

This is a power supply module for the standard breadboard. Its concave design will not waste your proto zone. This breadboard power shield supports Micro USB power supply and power jack 7-12V supply. There are two independent power optional: 5V/3.3V. With this board, you can send power to both power lane of the breadboard, and each side has an on/off switch. CityTech BD


  1. Locking On/Off Switch
  2. Green LED Power Indicator
  3. Voltage Swapping Switch on both rail Channel
  4. Its concave design will not waste your proto zone.
  5. Easy to install on a breadboard with Compact portable size
General Specification
Input Voltage Range6.5V – 12V
Output Voltage(V)3.3/5
Length (mm)53
Width (mm)36
Height (mm)14
Weight (gm)11
Shipment Weight0.016 kg
Shipment Dimensions8 × 6 × 4 cm

Package Includes:

1 x XD-42 Breadboard Power Supply 5V / 3.3V Micro USB
