Description

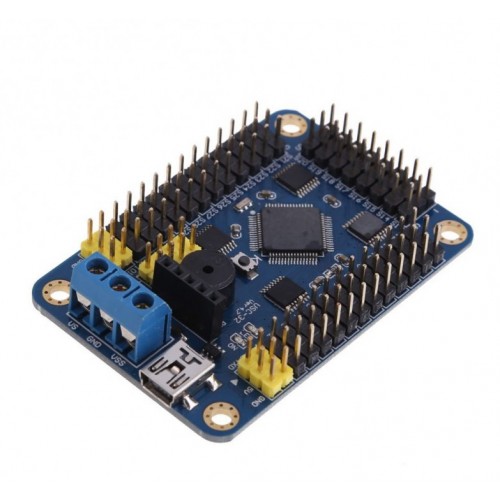

USB 32Ch Servo Motor Controller Board, support PS2 controller WIFI V7.2 support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user has the latest firmware. CityTech BD

Up to 32 servo motors can control at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (Arduino, 51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. You can also download instructions to the servo motor controller for offline operation.

The biggest advantage is that you can use the computer software to control the robot or control your servo steering. It can control 32 servo motors at the same time, with high precision (1 μs), and adopt the 32-bit original package CPU, internal integration USB communication interface, high stability, and precision. CityTech BD

Detail Specifications:

Powerful MCU
High controlling accuracy
Offline operation function
Identify baud rate automatically
Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board. And it can be chosen automatically. With the USB reverse protection, it can protect your computer from been hurting by the reverse USB.)
Servos power supply: DC (depends on the motors, generally 5V DC)
Control channels: 32. (can be controlled at the same time and the accuracy can be adjusted)
Communication Input: USB or UART (TTL or USART). (The Bluetooth or some other wireless module can be used to make the controlling)
Signal Output: PWM (Accuracy 1us).
Servo motor resolution: 1us, 0.09 degrees.
Baud Rate: 9600,19200,28400,57600,115200,128000(recognized automatically)
Servo motors supported: Futaba, Hitec or some other Servos Motor controlled by PWM.
Dimensions: 63.5mm x 43.5mm x 1.6mm.
Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software)
Flash memory: onboard 512K ROM (If every command is used to control the 32 motors at the same time, more than 500 commands can be saved.)

Features :

With 16M storage, can store thousands of indications, 256 groups of actions
Servo interface has three colors pins to different from each other
No need to programme
Simple indication operation
32 bits high efficient low consumption CPU
Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android
Can support bluetooth, WIFI wireless control
Adding signal isolation to protect control board CityTech BD
PS2 wireless handle
Compatible with all supporting serial port single chipUsing Micro USB interface

General Specification
Operating Voltage	5V
CPU voltage	3.3V
Servo motor input voltage	4.2-7.2V
CPU	32 Bits
Baud rate (USB)	115200
Baud rate (Bluetooth, UART)	9600
Storage Flash capacity	16M
Mode to choose	4 types
Simultaneously controlling servo number	32 channel
Max action groups	256 groups
Communication	UART
Shipment Weight	0.06 kg
Shipment Dimensions	10 × 6 × 4 cm
