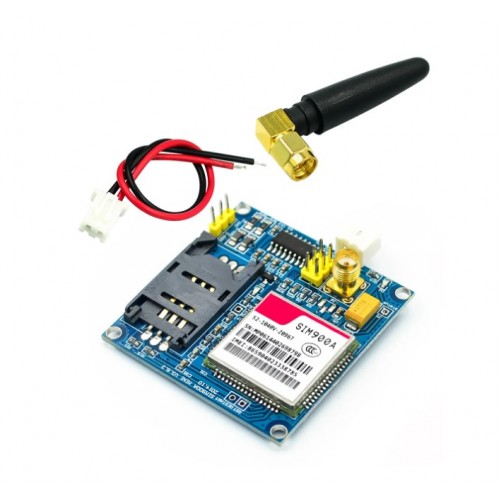

SIM900A GSM/GPRS Module V4.0

•  Compatible with Raspberry Pi and Arduino
• Two power supply interface: VCC5, 5V DC above 1A. Computer 5V power supply can be early computer USB. DC long data circuit over larger recommended 5V1A. VCC4, 3.5-4.5V power supply, ibid., suitable for a lithium battery.
• Control pin all leads.
• A TTL level, compatible with 3.3V and 5V.
• The two antenna interface, the default SMA straight head, connector for IPXmini antenna.
• One way of speech interface, the way Mike interface. CityTechBD

The control interface of each pin description:

• GND - GND
• SIMR SIM900A RXD, TTL level, can not be directly connected to the 232 level
• SIMT SIM900A TXD, TTL level, can not be directly connected to the 232 level
• RST - SIM900A reset, active low
• VCC_MCU when the SIM900A module and 5V TTL level communication, this pin is connected to DC 5V; when the level of communication of SIM900A and 3.3V TTL, this pin is connected to DC 3.3V.
• VCC5-DC 5V input
• VCC4-DC3.5--4.5 input

Onboard Resources:

• Serial port circuit(with protection)
• Antenna interface circuit(SMA bend female port)
• SIM card circuit(flip SIM slot)
• 4*3.5 fixture hole 4 pieces
• SIM900A serial port output terminal
• Size: 49mm x 47mm
• Net Weight: 28g
• Weight: 38g   CityTechBD

Package Includes:

• 1 x SIM900A V4.0 kit
• 1x Power Cable
• 1x Antenna   CityTechBD
