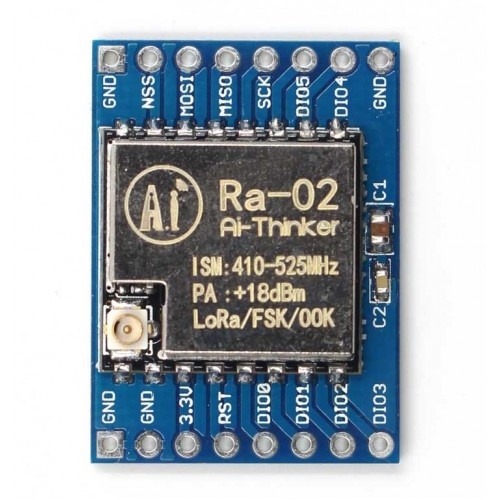

SX1278 LoRa Module 433M 10KM Ra-02 Original Ai
Ra-02 is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. The SX1278 RF module is mainly used for long-range spread spectrum communication, and it can resist Minimizing current consumption. The SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, and a long transmission distance and high reliability. CityTech BD
It can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment
Features:
- Constant RF power output at + 20dBm-100mW voltage change
- Half-duplex SPI communication
- Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
- Automatic RF signal detection, CAD mode and very high speed AFC
- Packet engine with CRC up to 256 bytes
- Small footprint dual-row stamp-hole patch package
- Shielded housing
- Spring Antenna CityTech BD
General Specification |
Communication distance: | 15KM |
Sensitivity: | down to -148dBm |
Programmable bit rates: | up to 300kbps |
RSSI dynamic range: | 127dB |
Wireless frequency: | 433MHz |
Working voltage: | 1.8-3.7v |
Working temperature: | -40-+80 ℃ |
Shipment Weight | 0.015 kg |
Shipment Dimensions | 12 × 8 × 2.5 cm |
Package Includes:
1 x SX1278 LoRa Module 433M 10KM Ra-02 Original Ai
