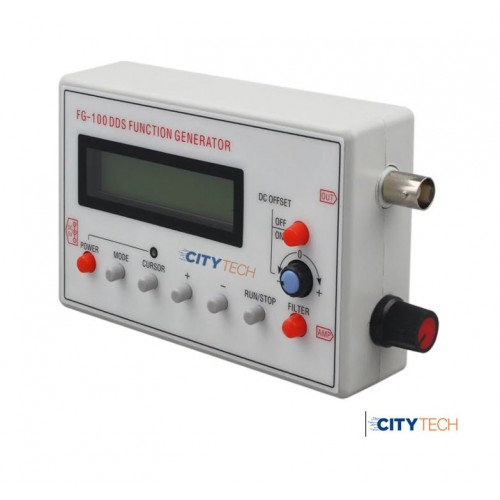

Function Generator DDS Signal Generator FG-100 Frequency Counter 1Hz - 500KHz

Description

Function Generator DDS Signal Generator FG-100 Frequency Counter 1Hz - 500KHz Price in BD

The FG-100 Function Generator is a compact and versatile Digital Signal Generator designed for a wide range of applications in electronics, testing, and prototyping. This DDS (Direct Digital Synthesis) signal generator offers precise frequency and waveform generation, making it ideal for hobbyists, students, and professionals. With an easy-to-read display and user-friendly interface, the FG-100 delivers exceptional performance at an affordable price in Bangladesh. CityTech BD

Specifications:
Waveforms                                    : sine, rectangle, triangle, positive and negative sawtooth
Sine wave frequency range          : 1 Hz ~ 500 kHz
Rectangle wave frequency range : 1 Hz ~ 20 kHz
Triangle wave frequency range     : 1 Hz ~ 20 kHz
Sawtooth wave frequency range   : 1 Hz ~ 20 kHz
Output voltage                               : 0 V ~ ±10 Vpeak-to-peak
Output impedance                         : 50 Ω
Sine wave distortion                      : less than 1 % (1 kHz)
Frequency setting resolution         : 1 Hz
DC offset                                        : ±10 V max.
Display                                           : LCD1602, 2 x 16 characters, 58 mm x 9.4 mm
Microcontroller                               : ATMega48, 8 bit
Supply voltage                               : 3.5 Vdc ~ 10 Vdc
Supply current                                : 300 mA typical
Dimensions                                    : 140 mm x 80 mm x 35 mm
Weight                                            : 184 g

Package Includes:

1 x Power Generator Functions

1 x USB Cable

1 x Instruction Manual. CityTech BD
