Digital Electronic Weighing Sensor (5 Kg) Loadcell

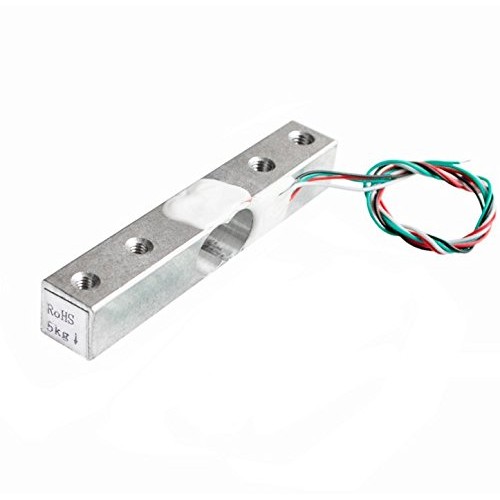

This straight bar load cell (sometimes called a strain gauge) can translate up to 5 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. CityTech BD

With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight CityTech BD

It has Four lead wires which can be connected to HX711 A/D PRESSURE SENSOR It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage. CityTech BD

Connection Diagram with Arduino via HX711:

General Specification
Dimensions in mm (LxWxH)75x13x13
Weighing Range (Kg)0 ~ 5
Rated Output1.0 ± 0.1mV / V
Non Linear Output± 0.03% F.S
Hysteresis0.0% F.S
Repeatability0.05% F.S
Creep(5 minutes) 0.05% F.S
Cable Length (cm)18
Zero Balance± 0.1 mV / V
Impedance (Ω)1066 ± 10% Ω
Output Impedance1000 ± 10% Ω
Temperature Effect on Output0.003% F.S / C
Operating Temperature Range (°C)-21 to 40
Weight (gm)29
Insulation Resistance (MΩ)2000
Shipment Weight0.08 kg
Shipment Dimensions8 × 3 × 1 cm

Package Includes:

1 x Weighing Load Cell Sensor 5kg YZC-131 With Wires
