Description

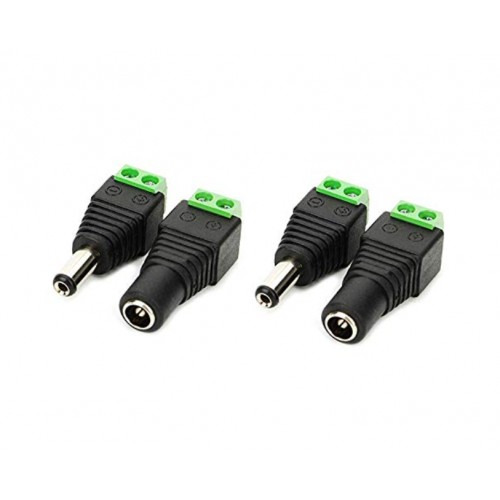

Barrel Connector Male-Female Pair in Bangladesh
This adapter allows you to connect a barrel jack connector to bare wires. One end has screw terminals and the other has a 5.5x2.1mm, center-positive female barrel jack. If you have a power supply with a barrel jack and want to plug it into a breadboard, this might be the simple solution. CityTechBD
Please be aware that the max current for this adapter is 10A
Features:
- Setup low voltage LED or CCTV Camera wiring with NO mess and NO soldering or electrical tape.
- Perfect for connecting the LED power supply with Strip!
- With this item you do not need to solder! Easy, cheap and fine!
- Screw terminals (for open wire leads), suitable for Dupont Cable.
- Barrel jack provides quick disconnect/reconnecting of wires, and screw-tight connectors hold your low voltage cable securely in place.
- Reliable connection, good performance.
- Simple & professional appearance for power cabling.
- Easy camera installation, saves time and provides more secure cable connection.
- No electrical tape, no splicing, no crimping - only a small screw driver needed. CityTechBD
| General Specification | |
| Needle | 2Pin |
| Material | Plastic |
| External Diameter of the Plug | 5.5mm |
| Internal Diameter of the Plug | 2.1mm |
| Dimension | 38mm(L) x 14mm(W) x 13mm(H). |
| Shipment Weight | 0.010 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement. CityTechBD
Package Includes:
1 x Barrel Connector Male
1 x Barrel Connector Female.
