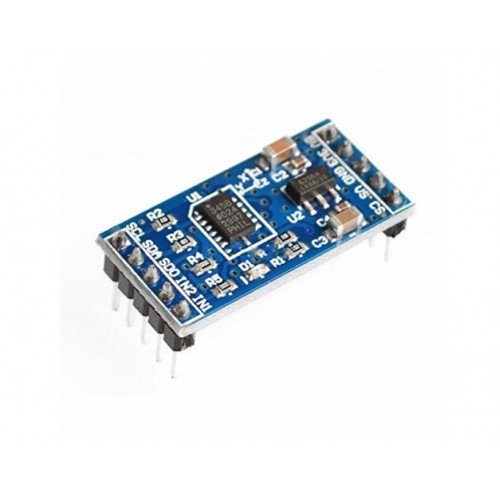

ADXL345 3-axis Digital Gravity Sensor Acceleration Module

Description

ADXL345 3-axis Digital Gravity Sensor Acceleration Module Price in Bangladesh

The ADXL345 is a low-power, 3-axis MEMS accelerometer modules with both I2C and SPI interfaces. The Breakout boards for these modules feature on-board 3.3v voltage regulation and level shifting which makes them simple to interface with 5v microcontrollers such as the Arduino. CityTechBD

The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz.

ADXL345 is very suitable for mobile applications. It can be applied to the skew detection in the measurement of the static acceleration of gravity, also can measure the movement or impact caused by the dynamic acceleration. The high resolution ( 4mg / LSB ), can be measured is less than 1.0° Angle change. CityTechBD

Features:

  1. On-board ADXL345, it's a low cost cap-based accelerometer sensor.
  2. Support 5V/3.3V voltage input, onboard RT9161, better performance than 1117, faster load the appropriate speed, it is ideal for high noise power supply environment.
  3. Common Pins were lead out, Pin distance is standard 100mil (2.54mm), compatible for your new system.
  4. PCB board is Gold-plated, Board size: 2.8 (cm) x 1.4 (cm) CityTechBD
General Specification
ChipADXL345
Pin Pitch2.54 mm
Length(mm)28
Width(mm)14
Height(mm)11
Weight(g)5
Power supply3-5V
Communicationthe IIC / SPI communication protocol
Measuring range± 2g ± 16g
Shipment Weight0.01 kg
Shipment Dimensions9 × 7 × 2 cm

Please allow 5% measuring deviation due to manual measurement. CityTechBD

Documentation:

  1. Schematics and Manual:
  2. Google Drive link
  3. ADXL345 Datasheet

Package Includes:

1 x ADXL345 Digital Angle acceleration sensor module. CityTechBD
