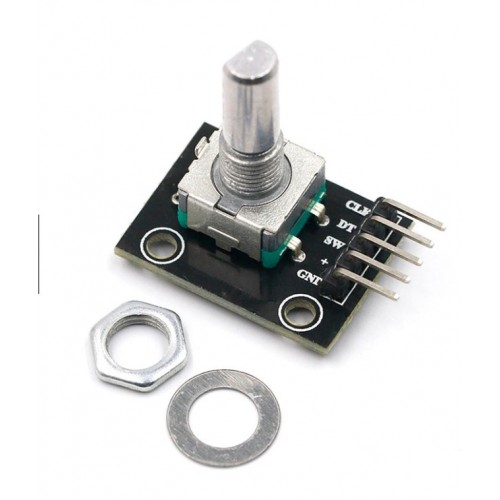

The M274 360 Degree Rotary Encoder Module Brick Sensor is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in. It’s a great device for stepper and servo motor control. You could also use it to control devices like digital potentiometers. CityTech BD
M274 360 rotary Degree encoder, is an incremental electro-mechanical device that converts the angular position or motion of a shaft or axle to digital code. The output of incremental encoders provides information about the motion of the shaft, which is typically further processed in processor/controllers into information such as speed, distance, and position.CityTech BD
Note: This module does not come with a fitting nut or washer , you have to buy it separately (the size required is 6.6mm)
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
General Specification |
Model | KY-040 |
Encoder Type | Incremental |
Cycles Per Revolution (CPR) | 20 |
Operating Voltage (VDC) | 5 |
PCB Hole Diameter(mm) | 2.75 |
PCB Hole pitch distance(mm) | 13.75 |
Length (mm) | 32 |
Width (mm) | 19 |
Height (mm) | 30 |
Weight (gm) | 10 |
Shipment Weight | 0.015 kg |
Shipment Dimensions | 4 × 3 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes :
1 x 360 Degree Rotary Encoder Brick Sensor Module citytechbd.com
