2S 20A BMS Charger 18650 Lithium Li-ion Battery Balance Protection Board


2S 20A BMS Charger 18650 Lithium Li-ion Battery Balance Protection Board

BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery, etc. CityTech BD

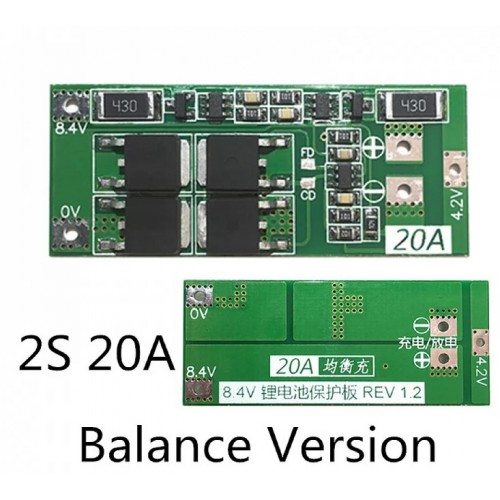

Two batteries (18650) can be connected simultaneously to the HX-2S-D20 charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 20 A. CityTech BD

This BMS module has 5 pins:

B+ : Battery positive pole
B- : Battery negative pole
BM : Mid-point of a battery assembly
P- : Negative charge / discharge terminal
P+ :Positive charge/discharge terminal

If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.

Power is supplied to the module from an external power source. The voltage range of the module is from 7.4 to 8.4 V. For charging, you can use a step-up voltage converter with a current limiter. Please note that this module is not a charger. CityTech BD


  1. Small size designed for a four-cell battery pack.
  2. Simple and convenient circuit for easy connections
  3. Over-charge/Over-discharge Protection.

General Specification



Over Charge Voltage Range

4.25-4.35 V + 0.05 V

Over Voltage Range

2.5-3.0 V + 0.05 V

Max. Operating Current

13 A

Max. Limiting Current

20 A

Charging Voltage

8.4-9 V

Quiescent Current

Lower than 10 µA

Internal Resistance

<300 Ohm

Operating Temperature

-40°C to +50°C

Length (mm)


Width (mm)


Height (mm)


Weight (gm)


Shipment Weight

0.005 kg

Shipment Dimensions

4 × 4 × 1 cm

Package Includes:

1 x 2S 20A 18650 Lithium Battery Protection Board
