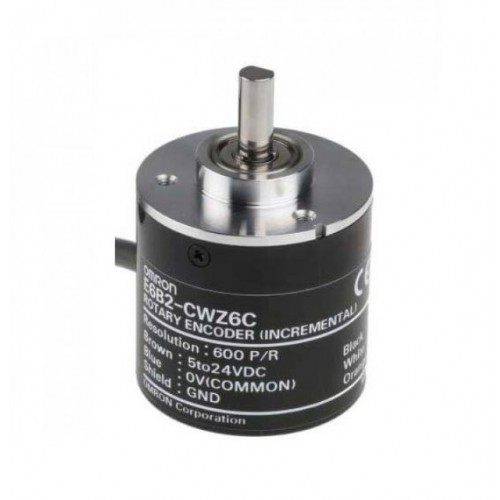

Omron Rotary Encoder

Omron Rotary Encoder in Bangladesh

Omron E6B2 rotary encoder features 10 - 2000 pulse per revolution and a NPN open-collector output that has a rotational speed of 6000 rpm incremental model Material used in main unit is aluminum and shaft is SUS420J2 martensitic stainless steel2 m standard cable length Insulation resistance 20 M Ohm Output phases A, B and Z-10 to 70 deg C operating ambient temperature. CityTech BD

Specification:

• Brand Name: Omron

• MFR Part Number|E6B2CWZ6C600PR2M#UNSPSC|39121527
• Item Rotary Encoder Pulses Per Revolution|10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720, 800, 1000, 1024, 1200, 1500, 1800, 2000
• Output Type: NPN Open-Collector
• Resolutions|600
• Speed|6000 rpm
• Power Supply|5 - 24 VDC
• Electrical Connection Pre-Wired
• Starting Torque|0.98 mN-m
• Rotor Inertia|1 x 10^-6 kg (m-sq), 3 x 10^-7 kg (m-sq) at 600 P/R
• Mounting Type: Servo Mounting Bracket
• Housing Material: ABS
• Dimensions|40 mm Dia
• Standard/Approvals: CE Certified
• Application: For general purpose applications. CityTech BD

Package Includes :

1 x Omron Rotary Encoder. CityTech BD
