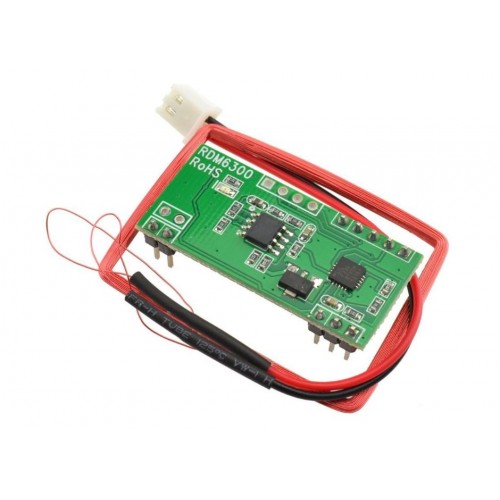

UART EM4100 RFID Card Reader RDM6300

Description

RDM6300 125KHz EM4100 RFID Card ID Reader Module is designed for reading code from 125KHz card compatible read-only tags and read/write the card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc. CityTech BD

Features:

  1. Maximum effective distance up to 150mm
  2. Less than 100ms decoding time
  3. Support external antenna
  4. Uart interface
  5. Support EM4100 compatible read-only or read/write tags
  6. Small outline design CityTech BD
General Specification
Operating Frequency125KHZ
Baud Rate9600
InterfaceTTL level RS232 format
Working voltageDC 5V(+/-5%)
Working current<50mA
Receive distance20~50mm
Working temperature-10°C~+70°C
Storage temperature-20°C~+80°C
Humidity0~95%
Wiring size:46*32*3mm
PCB size38.5 x 20 mm
Weight7g
Shipment Weight0.1 kg
Shipment Dimensions8 × 6 × 4 cm

Documentation:

  1. Interfacing RDM6300 RFID Reader Module with Arduino
  2. RDM6300 Wiki

Package Includes:

1 x UART EM4100 RFID Card Reader RDM6300. CityTech BD
