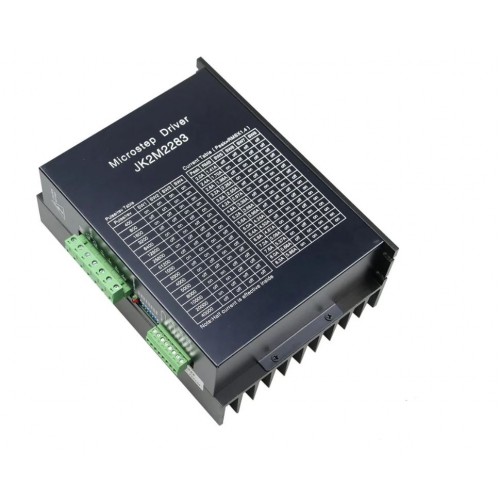

JK2M2283
Stepper Motor Driver in Bangladesh (BD)
Product
Description:
Feature
summary:High-performance, low price,
micro-step, Automatic idle-current reduction, Optical isolating signals I/O,
Max response frequency up to 200Kpps, Low temperature rise, smooth motion,
Online adaptive PID technology.
Make:china
Support
Motor: Nema 42
Stepper Motor or Nema 52
Stepper Motor
Product
Overview:
JK2M2283 is subdivided
and high-performance stepper motor drive using constant angle and
constant torque,which
is designed for 130BYG、110BYG
and other 8A following two-phase, four-phase hybrid stepping motor. The
driver uses the circuit which is Similar to the principle of servo control with
the features of smooth running, low noise, low vibration, low temperature rise
of the motor .It has 16 kinds of micro-step, and the micro-step can be set from
full step to 51200steps/rev.The working current can be set from 2.0A
to 8.3A, and the output current has 16 stalls, the current resolution is about
0.5A; with automatic semi-flow, self-test, overvoltage, under-voltage and
over-current protection. This driver is AC power, Voltage does not exceed
240VAC not less than 120VAC.
Product
Parameters:
Parameter
|
Min
|
Typical
|
Max
|
Unit
|
Input Voltage(AC)
|
150
|
-
|
220
|
VAC
|
Output current
|
0
|
-
|
8.3
|
A
|
Pulse Signal Frequency
|
0
|
-
|
200
|
KHZ
|
Logic Signal Current
|
7
|
10
|
16
|
MA
|
Features:
1、 High-performance, low price
2、 micro-step
3、 Automatic idle-current reduction
4、Optical isolating signals I/O
5、 Max response frequency up to 200Kpps
6、 Low temperature rise, smooth motion
7、Online adaptive PID technology
Applications:
Suitable
for a variety of large-scale automation equipments and
instruments. For example: labeling machine, cutting machine, packaging
machine, plotter, engraving machine, CNC machine tools and so on. It
always performs well when applied for equipment which requires for
low-vibration, low-noise, high-precision and high-velocity.
1. Current setting:Dial switch:ON=0;OFF=1
Phase current | SW5 | SW6 | SW7 | SW8 |
2.0 | 1 | 1 | 1 | 1 |
2.4 | 0 | 1 | 1 | 1 |
2.8 | 1 | 0 | 1 | 1 |
3.2 | 0 | 0 | 1 | 1 |
3.6 | 1 | 1 | 0 | 1 |
4.2 | 0 | 1 | 0 | 1 |
4.8 | 1 | 0 | 0 | 1 |
5.2 | 0 | 0 | 0 | 1 |
5.6 | 1 | 1 | 1 | 0 |
6.0 | 0 | 1 | 1 | 0 |
6.4 | 1 | 0 | 1 | 0 |
6.8 | 0 | 0 | 1 | 0 |
7.2 | 1 | 1 | 0 | 0 |
7.6 | 0 | 1 | 0 | 0 |
8.0 | 1 | 0 | 0 | 0 |
8.3 | 0 | 0 | 0 | 0 |
2. Micro-step Setting: Dial switch:ON=0;OFF=1
Subdivision | SW1 | SW2 | SW3 | SW4 |
400 | 0 | 0 | 0 | 0 |
800 | 1 | 0 | 0 | 0 |
1600 | 0 | 1 | 0 | 0 |
3200 | 1 | 1 | 0 | 0 |
6400 | 0 | 0 | 1 | 0 |
12800 | 1 | 0 | 1 | 0 |
25600 | 0 | 1 | 1 | 0 |
51200 | 1 | 1 | 1 | 0 |
1000 | 0 | 0 | 0 | 1 |
2000 | 1 | 0 | 0 | 1 |
4000 | 0 | 1 | 0 | 1 |
5000 | 1 | 1 | 0 | 1 |
8000 | 0 | 0 | 1 | 1 |
10000 | 1 | 0 | 1 | 1 |
20000 | 0 | 1 | 1 | 1 |
50000 | 1 | 1 | 1 | 1 |
3. Control signal Connector:
signal | function |
FAULT- | Common anode input positive terminal Common anode input positive terminal(+5V) |
FAULT+ |
ENA- | Enable signal terminal motor is offline when Enable signal is active, no internal current. |
ENA+ |
DIR- | Direction signal terminal Direction control signal control the motor running direction. |
DIR+ |
PUL- | Pulse signal terminal Pulse signal control the motor to run motor run 1 step after each pulse. |
PUL+ |
4. Power and Motor Connector:
AC | Power supply, 150~220VAC |
AC |
A+ | Motor phase A |
A- |
B+ | Motor phase B |
B- |
5. Problems and Solutions:
Phenomenon | Possible Cause | Solutions |
Fault indicator brightens red for a long time (over-current) | Electrical wire shorted | Check the motor lines and eliminate short circuit |
Motor failure | Replace motor |
Other reasons | Check back |
