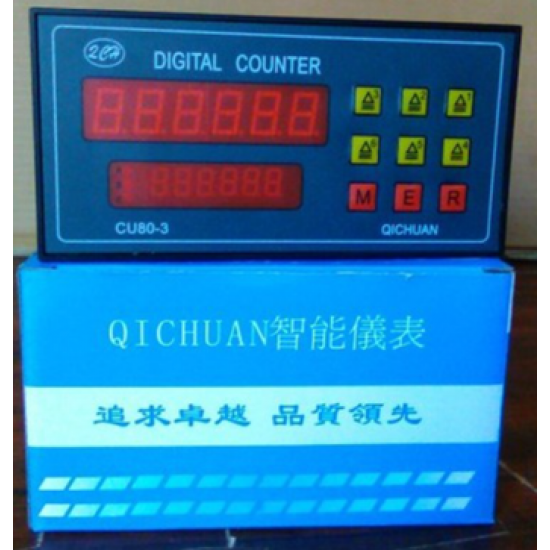

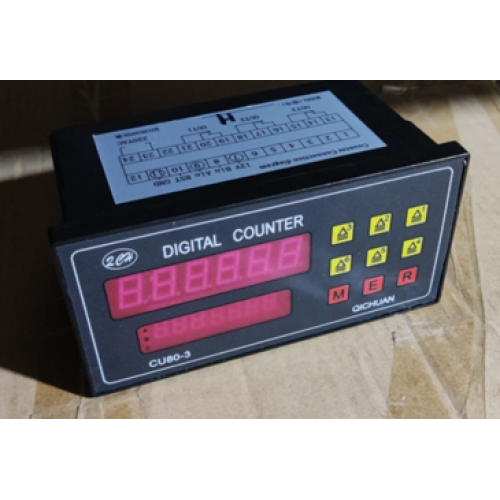

Counter Non-standard Three-stage CN-63K-H One-stage CN-61K Two-stage CN-62K Three-stage CU80-3

Counter Non-standard Three-stage CN-63K-H One-stage CN-61K Two-stage CN-62K Three-stage CU80-3 Price in BD

Discover high-performance Counter Non-standard CN Series Counters – designed for durability and precise industrial counting. The CN-61K One-stage, CN-62K Two-stage, and CN-63K-H Three-stage models, along with the CU80-3 Three-stage, offer accurate and reliable operation for manufacturing, production lines, and mechanical systems. With robust construction and advanced mechanism, these counters provide long-term service and exceptional value. Available now at competitive prices in Bangladesh (BD). Featured By CityTech BD

Specifications:

Power supply: AC85~265V 50/60Hz

Power consumption: <8VA

Relay capacity: 250VAC/3A or 30VDC/5A

Input impedance:≥10ΚΩ

Insulation resistance: ≥100ΜΩ

Insulation strength: 2KV/0.5mA

pulse interference Power supply:±2KV Input:±400V

Vibration: 10~55Hz; 0.75mm

Ambient conditions: -25~50℃;35~85% RH

EEPROM: Memory data remains unchanged for 10 years

Input signal: PNP/NPN encoder

Counting speed: 10KCPS

Ratio coefficient(P):0.0001~99.9999

Output:0.01~9.99 seconds

Reset mode: RNCF

Count range:0~+999999 (6bit count)

Size specification: 80×160

Installation opening size: 75×150

Model: CU80-1 (one output)

CU80-2

CU80-3
