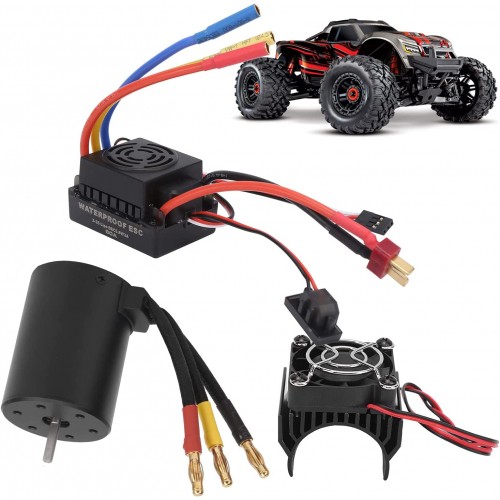

3650 Brushless Motor 3930KV + 60A Waterproof BEAST Series ESC
Motor Features :
- 4 poles 12 slot Hi-torque motor design
- CNC machined 6061 T6 windings maximizes efficiency
- High RPM ABEC5 oversize bearings
- Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- Stator- Super Thin(0.35mm) Laminations
- Removable/Replaceable rotor
- Precision engineered for Maximum energy conversion CityTech BD
Motor specification :
- KV: 3930KV
- Max RPM: 50000
- length: 50mm
- Diameters: 36mm with fins
ESC Features :
- Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
- Using LED program card to make adjustments.
- Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection
- Compatible with most of brushless motor CityTech BD
ESC Specifications:
- Current: 60A
- Burst Current: 380A
- Resistance: 0.0007ohm
- Suitable Car: 1:10 on-road and off-road cars/trucks,SCT
- Motor Type: 4 Pole Sensorless brushless motor
- Suitable Brushless Motor: 4P SL 3650B 2Y 4350KV
- Battery cell:2-3S Lipo/5-12S Cell Nixx( NiMH/NiCd)
- BEC Output:6V/3A
- Dimension(without fan): 52*38*36mm
- Weight(g): 107g CityTech BD
| General Specification | |
| Motor KV: | 3930KV |
| Motor Max RPM: | 50000 |
| Motor length: | 50mm |
| Motor Diameters: | 36mm with fins |
| ESC Current: | 60A |
| ESC Burst Current: | 380A |
| ESC Resistance: | 0.0007ohm |
| ESC Motor Type: | 4 Pole Sensorless brushless motor |
| ESC Battery cell: | 2-3S Lipo/5-12S Cell Nixx( NiMH/NiCd) |
| ESC BEC Output: | 6V/3A |
| ESC Dimension(without fan): | 52*38*36mm |
| ESC Weight(g): | 107g |
| Shipment Weight | 0.18 kg |
| Shipment Dimensions | 10.3x10.5x6.5 |
Documentation:
Package Includes :
1 x 3650 Brushless Motor 3930KV
1 x 60A Waterproof BEAST Series ESC
