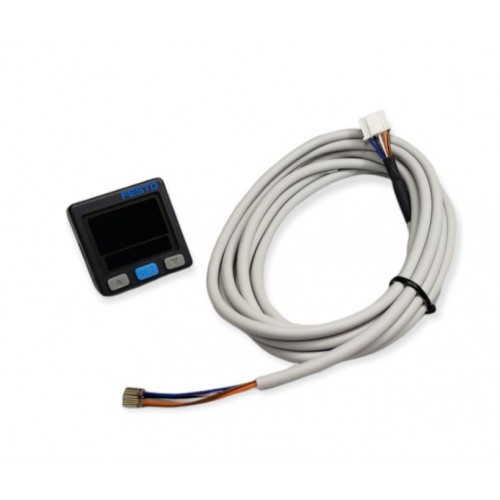

Pressure Sensors with Display SPABT-P10-R18-2N-K2-B-SA

Description

The pressure sensor SPAB can be used in many industries thanks to its wide range of connection and configuration options and its compact size. Switching point settings are emphasized via switching status indication and switching of the display value colour. CityTech BD

Applications:

  1. Pressure/vacuum sensing
  2. Light assembly
  3. Wherever there is a need for space-saving pressure measurement with visualization and limited robustness
  4. Easy identification of the system status by means of clear, color-based switching status detection

Features:

  1. Pressure measuring range –1 … +1 or 0 … 10 bar
  2. Relative pressure measurement
  3. Pressure supply port G1/8, R1/8, NPT1/8-27 or M5 female thread
  4. Electrical connection cable, plug M8x1 or plug, square design
  5. Switching output PNP, NPN
  6. Analogue output 1 … 5 V or 4 … 20 mA, switchable
  7. Two-part, multi-coloured display
  8. Copy function (settings can be transferred from one device to another)
  9. Simple commissioning thanks to intuitive operation
  10. Compact design 30x30 mm CityTech BD
General Specification
TypeSPAB/ Piezo resistive pressure sensor with multi-colored display
Pressure measuring range [bar]P10/ (0 … 10)
Pressure inputR/ Relative pressure
Pneumatic connectionR18/ Male thread R1/8 and female thread M5
Electrical output2N/ 2 switching outputs NPN
Cable/ ConnectorK2: Plug Design (with 2m lead wire)
Shipment Weight0.126 kg
Shipment Dimensions15 × 7 × 7 cm

Documentation:

  1. Datasheet

Package Includes:

1 x Pressure Sensors with Display SPABT-P10-R18-2N-K2-B-SA. CityTech BD
