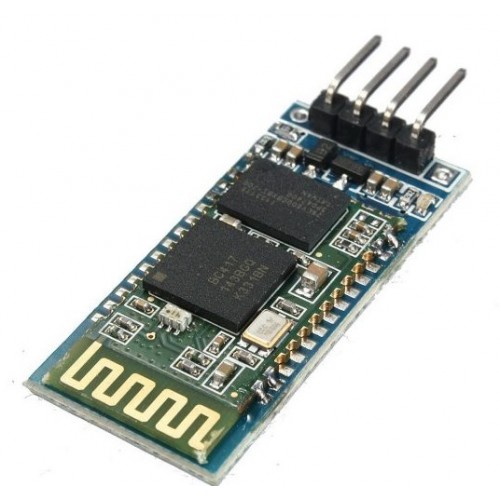

HC-06 Arduino Bluetooth Module

The Arduino Bluetooth Module HC-06 is a type of Bluetooth transceiver that can be used to add wireless communication capabilities to an Arduino microcontroller project. The module supports both Master and Slave modes and operates using the serial communication protocol. It can be used to send and receive data between two Bluetooth devices, such as between an Arduino board and a smartphone. The HC-06 module is easy to use, simply connect it to the Arduino's serial communication pins and use the Arduino's serial library to communicate with the module. This allows for the creation of wireless projects that can be controlled from a smartphone or other Bluetooth-enabled device. CityTech BD

Features:

1. Bases at CSR BC04 Bluetooth technology.
2. with build-in 2.4GHz PCB antenna
3. It’s at the Bluetooth class 2 power level.
4. Range test: 10 meters
5. Operating voltage: 3.3V to 6V DC
6. Operating current in pairing is in the range of 30~40mA.
7. Operating current in communication is 8mA.
8. Interface via UART, default baud rate at 9600 bps
9. Operating temperature range: -25 °C – +75°C
10. Dimensions 27mm×13mm×2.2mm. CityTech BD

Applications:

1. Wireless control: Allows for remote control of Arduino projects using a smartphone or other Bluetooth-enabled device.
2. Data logging: Can be used to collect data from sensors wirelessly and log the data on a smartphone or other device.
3. Home automation: Can be used to control lights, fans, and other appliances wirelessly using a smartphone or other Bluetooth-enabled device.
4. Robotics: Can be used to control robotic movements wirelessly using a smartphone or other Bluetooth-enabled device.
5. Educational projects: Can be used in educational projects to demonstrate the principles of wireless communication and data transfer.

Wiring Specification :

1. VCC: The positive 3.3-5 v power supply.
2. GND: Connect power negative.
3. DO: TTL switch signal output.
4. AO: This is analog output. CityTech BD

Documentation:

1. Power supply voltage: Ensure that the module is powered within the specified voltage range to avoid damage.
2. Grounding: Proper grounding is important to prevent electromagnetic interference and ensure reliable communication.
3. Baud rate: Ensure that the baud rate is set correctly in both the Bluetooth module and the host device to ensure proper communication.
4. Pairing: Ensure that the module is paired with the correct device to prevent unauthorized access or data transmission.
5. Interference: Be aware of other devices that may cause electromagnetic interference and avoid operating the module in close proximity to such devices.

Package Includes:

1 x HC-06 4pin Bluetooth Module. CityTech BD
