Description

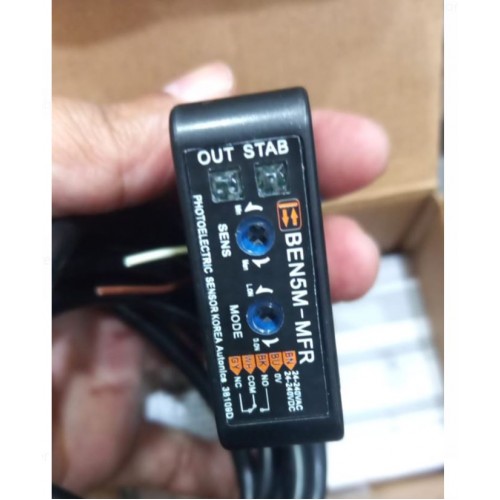

BEN5M-MFR New Original Autonics Photoelectric Switch Sensor in Bangladesh (BD)
- Sensing type : Retroreflective type (standard type)
- Sensing distance : 5m (MS-2)
- Sensing target : Opaque material of min. Ø60mm
- Light source : Infrared LED (940nm)
- Response time : Max. 20ms
- Power supply : 24-240VAC~ ±10% 50/60Hz, 24-240VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by switch)
- Control output : Relay. CityTech BD
Specifications:
| Sensing type | Retroreflective type(standard type) |
|---|---|
| Sensing distance | 5m(MS-2) |
| Sensing target | Opaque material of min. Ø60mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 20ms |
| Power supply | 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 4VA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | Relay |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Accessories_Individual | Reflector(MS-2) |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 208g |
Package Includes :
1 x BEN5M-MFR New Original Autonics Photoelectric Switch Sensor. CityTech BD
