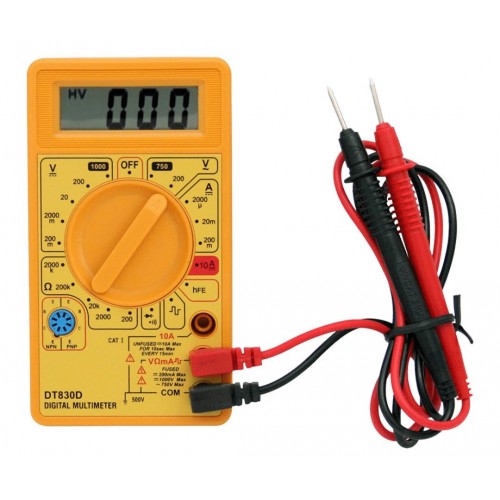

Description: DT830D Digital Multimeter AC/DC Voltage
DT830D DT-830D 830D Mini Digital Multimeter Voltmeter Voltage Ammeter Ampere Ohm Meter Test Probe DC AC LCD Display AC 750V DC 1000V Buzzer Overload Protection Square Wave Output Digital Multimeter AC/DC Measuring Voltage Current High Quality Low Price. CityTech BD
DT-830D Compact meter checks continuity of wires, fuses and electrical system components. Performs measurements of volts, amps, ohms and transistor gain (hFE). Can be used to test diodes. Low impedance meter can be used on automotive computer circuits. Rotary switch. Overload protection. Removable leads. 9 volt battery powered. 7 functions and 19 ranges Covers AC or DC voltage, resistance, DC amps, battery, diode and transistor Two 575mm test leads Diode and fuse protected Super sensitive meter. CityTech BD
Features:
- Multifunction:Can?measure?AC/DC?voltage,DC?current,resistance,diode,hFE,continuity?and?square?wave?output.
- Portable?design:It’s?small?and?can?be?put?into?pocket,easy?to?carry.
- Wide?range?of?applications:It’s?a?perfect?tool?for?the?laboratory,factory?and?home.
- Clear?to?read:With large LCD display, convenient to read data.
- More advantages:Low?battery?indication,continuity?buzzer?and?overload?protection. CityTech BD
Specifications:
- Model:DT-830D
- Color: Black/Yellow optional
- Display?Counts:1999
- Diode Test: Yes
- hFE Test: Yes
- Continuity buzzer: Yes
- Square wave output: Yes
- Low battery indication: Yes
- Auto polarity display: Yes
- Overload Protection: Yes
- DC Voltage:200mV/2V/20V/200V/1000V??0.5%
- AC Voltage:200V/750V
- Current:2000uA/20mA/200mA/10A
- Resistance:200/2K/20K/200K/2000K
- Power:9V battery
- Size:125X70X25mm
- Net?Weight:109g CityTech BD
Note:
Plug in connector for red (Positive) test lead for current ( between 200mA and 10A ) measurement. There is no fuse for “10A” jack. To use safely, each measurement can not last for more than 10 seconds, and the interval between each measurement must be more than 15 minutes. CityTech BD
- Diode: Testing Voltage about 2.8V, current about 1mA. The approximate forward voltage drop in mV will be displayed.
- Buzzer: The buzzer will sound when it is less than about 50 ohm.
- Signal output: square wave ( 50Hz ) or sine wave ( 1000Hz ). Level output: 5Vp-p CityTech BD
Package Include:
- 1 x DT830D Digital Multimeter AC/DC Voltage Black/Yellow
