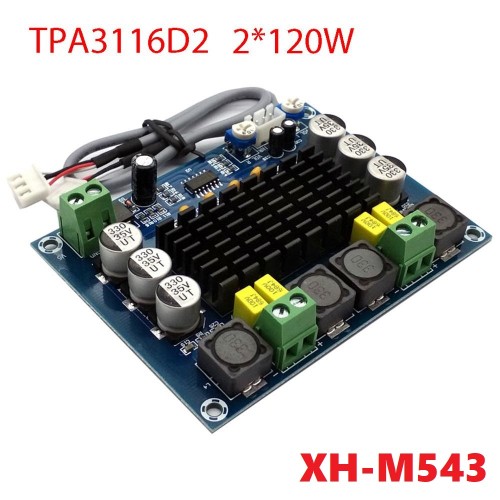

XH-M543 TPA3116D2 TPA3116 120X2W DC12-26V Dual Channel Stereo High Power Digital Audio Power Amplifier Board Amplification DIY Module

XH-M543 TPA3116D2 TPA3116 120X2W DC12-26V Dual Channel Stereo High Power Digital Audio Power Amplifier Board Amplification DIY Module

Features:

• A strong TPA3116D2 chip is a digital power amplifier chip, with low idle loss characteristics, makes it work well and quickly.
• Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
• It can be used for car vehicle computer speaker, family audio and video, and empty square.
• This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.
• There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of short circuit. CityTech BD

Specification:

• Product Name: TPA3116D2 digital amplifier board
• Supply voltage: DC12-26V
• Input current: above 3A
• Output power: maximum 100x2W
• Signal to noise ratio: 100dB
• Channel number: mono channel
• Product size: 92X68X16MM CityTech BD

Operating Instructions:

• Connect the power input terminal to the DC12V – 26V power supply (24V is recommended);
• Connect the audio input to a sound source, such as MP3, mobile phone, computer, etc.
• Connect the audio output to the speaker, pay attention to the positive and negative, it is recommended to connect more than 120W professional stage speakers, to reproduce its effect. CityTech BD

Package Include:

• 1 x XH-M543 TPA3116D2 TPA3116 120X2W DC12-26V Dual Channel Stereo High Power Digital Audio Power Amplifier Board Amplification DIY Module. CityTech BD.
