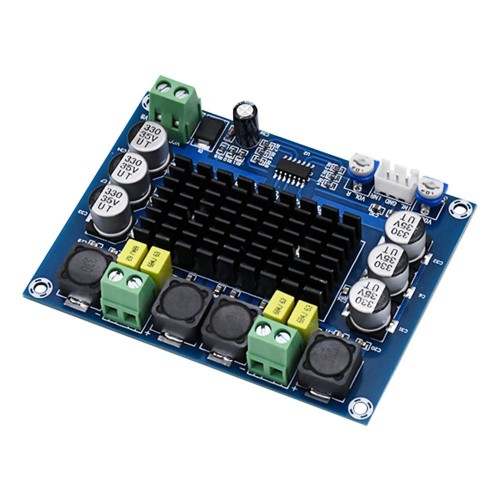

TPA3116D2 Dual-channel Stereo High Power Digital Audio Power Amplifier Board 2x120W XH-M543

Description

Product details of TPA3116D2 Dual-channel Stereo High Power Digital Audio Power Amplifier Board 2x120W XH-M543

  • Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W
  • Signal to noise ratio: 100db
  • Channel: Dual channel stereo
  • Size: 92 x 68 x 16mm
  • 100W 24V, maximum rated current is 2A
  • The maximum is 100W, please try not to adjust to 100W
  • 100W is the maximum amount, the current will follow the actual transfer to change, there is no fixed current CityTech BD

Features:
Onboard front-facing IC to improve the input sensitivity, high-definition sound quality.
Name: TPA3116D2 Digital Amplifier Board
Model: XH-M543
Chip type: TPA3116D2
Working voltage: DC12-26V
Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W
Signal to noise ratio: 100db
Channel: Dual channel stereo
Size: 92 x 68 x 16mm CityTech BD

100W 24V, maximum rated current is 4.2A
The maximum is 100W, please try not to adjust to 100W
100W is the maximum amount, the current will follow the actual transfer to change, there is no fixed current CityTech BD
Included:
1 x Audio Amplifier Board
