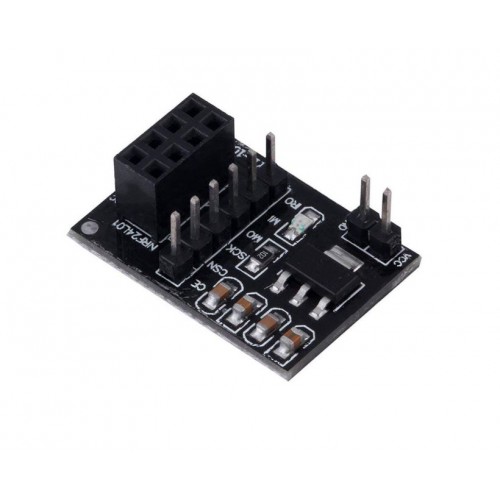

NRF24L01 Breakout Adapter with Voltage Regulator in Bangladesh (BD)

DESCRIPTION

The nRF24L01+ are RF transceiver modules that can be used for wireless communications. They operate at a voltage range of 1.9 – 3.6V for power. This nRF24L01 breakout adapter can be powered off 5V-12V and supplies well regulated 3.3V to the NRF24L01 socket. It also breaks out the pins for easier hookup and has a power on LED. CityTech BD

PACKAGE INCLUDES:

• nRF24L01 Breakout Adapter. CityTech BD

KEY FEATURES OF NRF24L01+ BREAKOUT ADAPTER:

• 3.3V Voltage Regulator
• Labeled breakout pins
• Power LED. CityTech BD

The module has a 2-pin male header for making power connections.

1 x 2 Header (male)

• GND  – Ground. Connect to ground on microcontroller or separate power supply if used
• VCC  – 5-12V. May be powered off the 5V from the microcontroller or a separate power supply.

The module has a 1×6-pin male breakout header for making connections to the microcontroller. CityTech BD

1 x 6 Header (male).

• CE  – Chip Enable. Sets whether module is in RX or TX mode.
• CSN – SPI Chip Select
• SCK – SPI Clock
• MOSI – SPI Slave Data Input
• MISO – SPI Slave Data Output
• IRQ – Maskable Interrupt

The adapter has a 2×4-pin female header that mates with the nRF24L01+ module. These pins mirror the connections made on the 1×6 header and 1×2 power header. Be sure to observe proper orientation when inserting the module into the adapter. The module extends off the end of the adapter and not over it. CityTech BD
