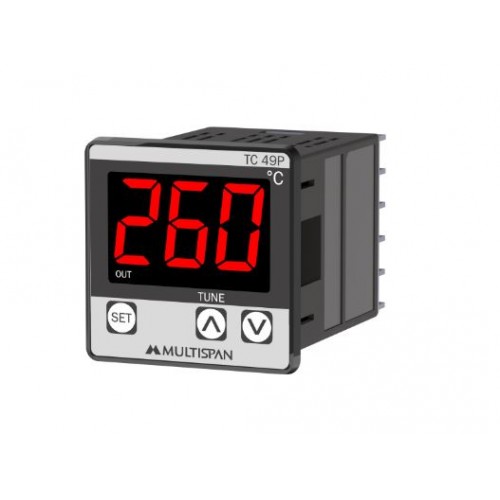

Multispan Single Display TC-49 Digital Temperature Controller

Specifications: TC-49 Digital Temperature Controller

• Brand: Multispan
• Model: TC-49
• Size: 48 x 48 x 70
• Type: Temperature Controller
• Relay Output: 230 VAC, 5 A, 1 C/O
• Sensor Type: J/K (configurable) AND PT-100 2W/3W
• Display Type: Single display: 7 segment, 3 digit, 0.56 Inch Red LED display
• Range: J (0?C to 400?C & 0?C to 600?C), K (0?C to 9990?C), PT-100 2W/3W (0?C to 400?C, -50.0?C to 200.0?C)
• Resolution: J & K 1?C, Flx PT-100 2W/3.1?C fix
• Accuracy: ?1%
• Power Consumption: 90-270V AC/DC, SMPS
• Control Action: Time proportional/ON-OFF
• Operating Temperature: 0?C – 55?C
• Frequency: 50/60 Hz
• Protection: Relay Turns Off In Case Of Sensor Break
• Features: 1 set point (push button to set SET point)
• Humidity: 95% RH CityTech BD
