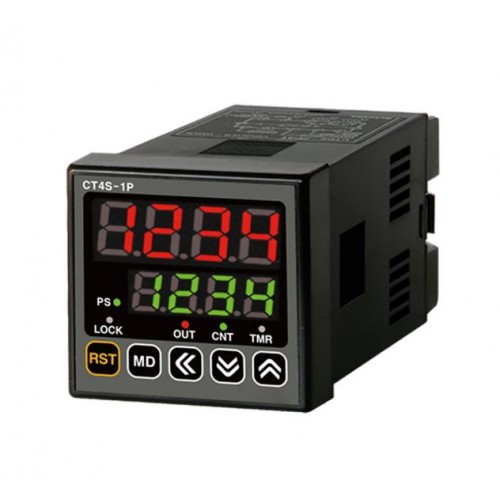

AUTONICS CT4S-1P4

Display method

4-digit 7-segment LED

Operation method

Counter: Count up, Count down, Count up/down
Timer: Count up, Count down

Terminal

Terminal block

Output Operation

SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME

Power supply

100-240VAC~ 50/60Hz

Time operation

POWER ON START
SIGNAL ON START

External Power Supply

Max. 12VDC ±10%, 100mA

Signal Input Method

Voltage input(PNP), No-voltage input(NPN)

Max. Counting Speed

1, 30, 1k, 5k, 10k [cps]

Min. signal Width

1ms/20ms

Memory Protection

Approx. 10 years

Setting range

0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour

Control output_Type

1-stage preset

Control output_Relay

SPDT (1c): 1

Control output_NPN open collector

1

Protection structure

IP65(front panel)

Counter_Counting range

-999 to 9999

Counter_Scale

Decimal point up to third digit

Counter_Min. input signal width

RESET: Selectable 1ms/20ms

Timer_Min. input signal width

INA, INH, RESET: Selectable 1ms/20ms

Environment_Ambient temperature

-10 to 55℃, storage: -25 to 65℃

Environment_Ambient humidity

35 to 85% RH, storage: 35 to 85% RH

Weight

Approx. 212g (approx. 159g)
