DC 12V 24V Stepper Motor Pulse Signal Generator Module For Stepper Motor Driver Controller Speed Regulator 8-24V

DC 12V 24V Stepper Motor Pulse Signal Generator Module For Stepper Motor Driver Controller Speed Regulator 8-24V in Bangladesh (BD)

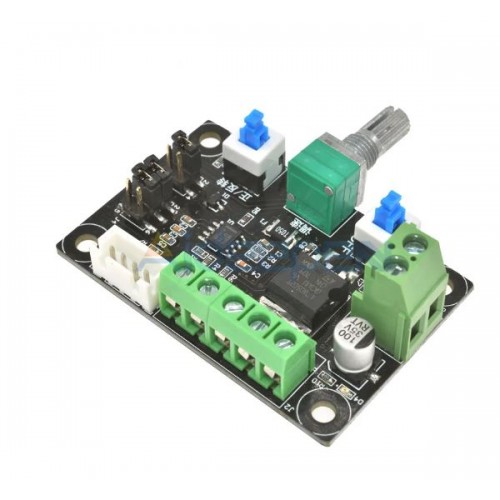

This versatile module serves as a pulse generation unit, supplying essential control signals to stepper motor drivers. It is a key component for managing stepper motors, requiring a compatible driver for operation. CityTech BD

Key Features:

• Suitable for use with a wide range of stepper motors and drivers.
• Can be integrated into a simple control platform with a stepper motor and DC power supply.
• Offers three selectable low-frequency signal options: high (5.4k-160kHz), middle (540-16.6kHz), and low (80-2.4kHz), adjustable via jumper settings.
• Capable of producing both pulse and PWM signals, with jumper selection for signal type.
• Easy frequency measurement via PUL and common cathode end connections. CityTech BD

Installation: Different stepper drivers may use different names for connection terminals:

• EN=ENA=FREQ: Enable
• PUL=PULS=CLK: Pulse
• DIR=CW=CWW: Direction

Connection Methods: Common Anode (B):

• Connect EN+, PUL+, and DIR+ together to com+
• Connect EN- to EN
• Connect PUL- to CLK
• Connect DIR- to DIR CityTech BD

Common Cathode (B):

• Connect EN-, PUL-, and DIR- together to com-
• Connect EN+ to EN
• Connect PUL+ to CLK
• Connect DIR+ to DIR

Package Include:

• 1 Pcs X DC 12V 24V Stepper Motor Pulse Signal Generator Module For Stepper Motor Driver Controller Speed Regulator 8-24V. CityTech BD.
