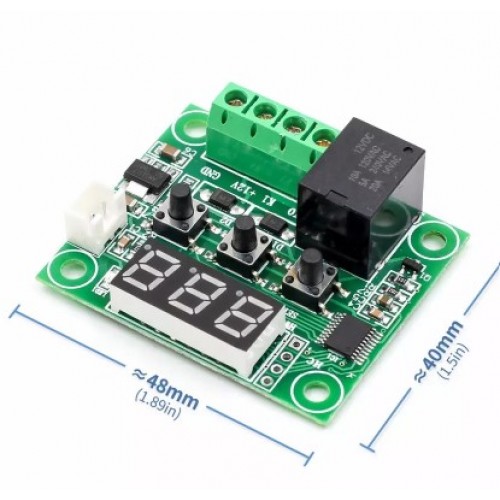

Product details of W1209 Temperature Controller

Control range: -50 ~ 110
Input Power: DC 12V
Resolution: -9.9-99.9 0.1 , other temperature ranges 1
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Measurement accuracy: 0.1
Output range: 1 way 10A relay
Control accuracy: 0.1
Environmental requirements: -10-60 , humidity 20% -85%
Hysteresis accuracy: 0.1
Size: 48 * 40mm
Refresh rate: 0.5S
Power consumption: Static current: <= 35MA,attract current:<= 65MA
Temperature protection :0-110
Display Type: 0.28 " three digital display tube
Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + - to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!
Lights, LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller

Technical parameters

Control range: -50 ~ 110
Input Power: DC 12V
Resolution: -9.9-99.9 0.1 , other temperature ranges 1
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Measurement accuracy: 0.1
Output range: 1 way 10A relay
Control accuracy: 0.1
Environmental requirements: -10-60 , humidity 20% -85%
Hysteresis accuracy: 0.1
Size: 48 * 40mm
Refresh rate: 0.5S
Power consumption: Static current: <= 35MA,attract current:<= 65MA
Temperature protection :0-110
Display Type: 0.28 " three digital display tube

Package Includes : 1 x W1209 Digital Temperature Controller
