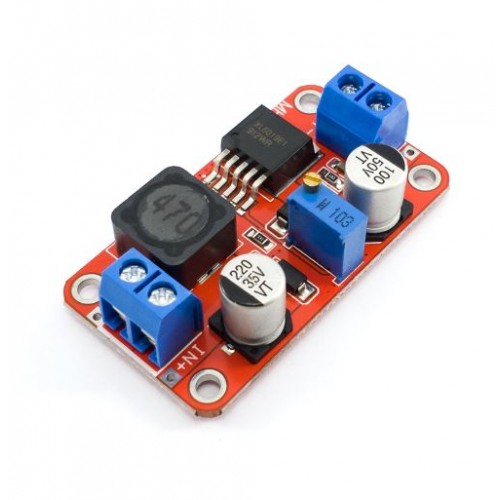

XL6019 DC-DC Booster Power Supply Module Output Adjustable

XL6019 DC-DC Booster Power Supply Module Output Adjustable in Bangladesh (BD)

Specification:

• Input range: 3.8 V-32 V
• Output range: 1.25 V-35 V
• Input current: 3A (max), 18 ma without load (5 V input, 8 V output, the load is not less than 18 m, the higher the voltage, the higher the load current).
• Conversion efficiency: <94% (the higher the pressure, the lower the efficiency)
• Switching frequency 400 kHz
• Output ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)
• Operating temperature: -40- + 85
• Size: 49mm * 24mm (L * W ) CityTech BD

PACKAGE INCLUDES:

1 x XL6019 DC-DC Booster Power Supply Module Output Adjustable. CityTech BD
