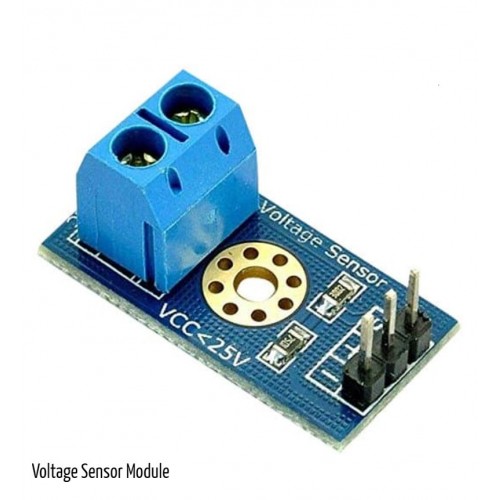

Voltage Sensor DC 0-25V Module for Arduino

Voltage Sensor DC 0-25V Module for Arduino in Bangladesh

This module is based on a resistive divider principle design, make the interface terminal input voltage reduced 5 times, Arduino analog input voltage up to 5V, then the input voltage of the voltage detection module can not be greater than 5V × 5 = 25V (if used 3.3V system, the input voltage can not exceed 3.3Vx5 = 16.5V). Because Arduino AVR chips used in 10 AD, so the resolution of the analog module is 0.00489V (5V / 1023), so the voltage detection module detects a minimum input voltage of 0.00489V × 5 = 0.02445V. CityTech BD

• Voltage input range: DC0-25V
• Voltage detection range: DC0.02445V-25V
• Voltage Analog Resolution: 0.00489V
• DC input connector: Terminal cathode connected to VCC, GND negative pole
• Output interface: "+" then 5/3.3V, "-" then GND, "s" then the Arduino AD pins

PACKAGE INCLUDES :

1 x Voltage Sensor DC 0-25V Module for Arduino. CityTechBD
