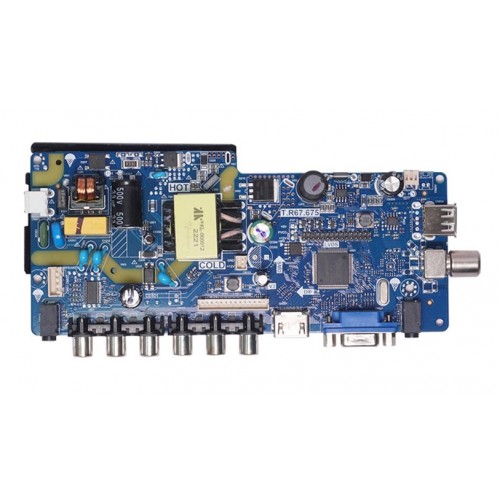

T.R67.675 24” Motherboard With Inbuilt SMPS and LED Driver

T.R67.675 24” Motherboard With Inbuilt SMPS and LED Driver

Model No. T.R67.675 (Combo Board)
LED Backlight: 28V-55V 220mA to 280mA
Display Format: 1366×768 (HD) and 1920×1080 (FHD)
Aspect Ratio: 4:3, 16:9 & 16:10

17 To 24 Inch Universal LED-TV Main-Board T.R67.675 Inbuilt Smps And LED Driver

T.R67.675 Universal LED-TV Main-Board inbult smps and led driver

Model No. T.R67.675 (Combo Board)

LED Backlight: 28V-55V 220mA to 280mA

Display Format: 1366×768 (HD) and 1920×1080 (FHD)

Aspect Ratio: 4:3, 16:9 & 16:10

GENERAL SPECIFICATIONS:

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: DC +12V(Default) +5V(jumping setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for motherboard only)

Maximum Current for USB: 500mA

How to Change Resolution:

1366×768 (HD) => Source 03661

1920×1080 (FHD) => Source 03662

Package Include: 1×T.R67.675 (Combo Board), 1× Remote.
