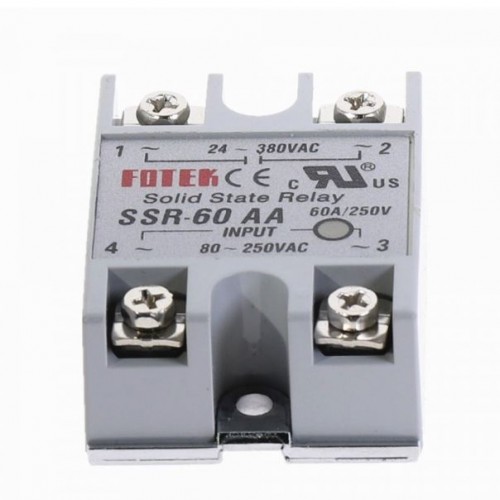

Fotek Solid State Relay SSR-60AA

Fotek Solid State Relay SSR-60AA in Bangladesh

The solid state relay 60AA (SSR) allows you to control high-current AC loads from lower voltage AC circuits. Solid state relays have several advantages over mechanical relays. SSR’s can be switched by a lower voltage and at a lower current than most mechanical relays. Since there is no moving contacts, SSR’s can be switched at a faster speed and last longer without wearing out. CityTech BD

Note: Picture might be different to unit

Specification:

• Input voltage: 80-250VAC
• Output voltage: 24-380V AC
• Output current: 60A
• Working voltage: 250V
• On voltage: 1V
• One off time: 10ms
• Off leakage current: 2mA
• Material: plastic + metal
• Size: 60*45*23mm
• Default Output State- Normally Open (NO). CityTech BD
