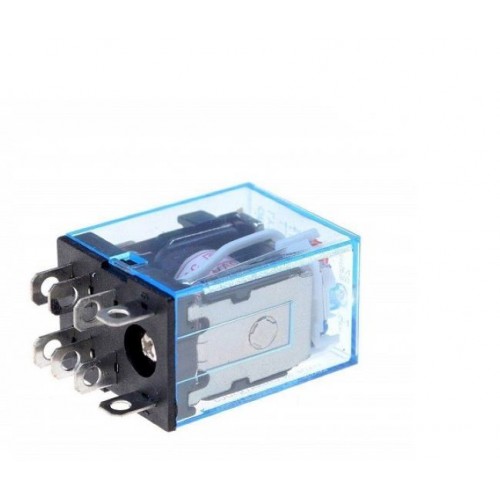

Relay 8 Pin 12VDC without Base in Bangladesh.

• Product Name : Power Relay
• Material: Electronic Component
• Production: Mini Medium Electromagnetic Relay
• Relay Model No. : LY2/ LY2NJ/ JQX-13F/ Any
• Thin 8 pins 2NO + 2NC
• Current: 10A
• Contacts: Silver Plated Gold
• Coil voltage: DC 12V
• Contact capacity: 10A 250VAC, 10A 28VDC
• Pull-in voltage: ≤80% (V)
• Release voltage: DC: ≥10% (V), AC: ≥30%
• Contact resistance: ≤50 (mΩ)
• Insulation resistance: ≤100 (mΩ)
• Terminals form: Socket
• Action time: 20ms or less
• Reset Time: 20ms or less
• Operating frequency:
• Mechanical 18,000 cycles / hour
• Electrical 18,000 times / hour. CityTechBD

Package Includes:

1 X Relay 8 Pin 12VDC without Base. CityTechBD
