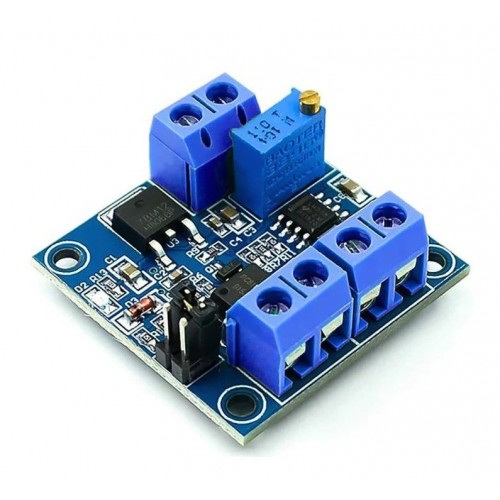

PWM to Voltage Converter Module 0-100% to-10V
Regular Price:
870৳
Status:
In Stock
Model: CBD-1923
- Description
- Questions (0)
- Reviews (0)
Description
This Module can convert PWM digital signals into 0 to 10V analog signals. This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. Module size is small, easy to apply in different places. CityTech BD
Product Images are shown for illustrative purposes only and may differ from the actual product.
Pin Description:
- VCC -Working power 12-30V
- GND -Ground
- PWM – Input PWM signal positive
- GND -Input voltage ground
- VOUT-Output voltage: 0-10V
- GND – Output ground CityTech BD
Application:
- This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage
Features:
- Using single-chip embedded technology
- Easy to operate, can be fine-tuned by potentiometer
- Select the PWM signal input level range through the short cap
- The module is small, easy to carry and use
- PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in ‘5V’. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
- PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in ‘24V’. This level is used for normal PLC controllers. Insert jumper in the outer side.
| General Specification | |
| Conversion range | 0% -100% PWM to 0-10v voltage |
| PWM signal reception frequency range | 1KHz – 3KHz |
| Operating voltage | 12V – 30V DC |
| Allowable error | 5% |
| Length (mm) | 33 |
| Width (mm) | 33 |
| Height (mm) | 20 |
| Weight (gm) | 20 |
| Shipment Weight | 0.025 kg |
| Shipment Dimensions | 4 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes:
1 x PWM to Voltage 0-100% to-10V Converter Module
What is the price of PWM to Voltage Converter Module 0-100% to-10V?
The latest price of PWM to Voltage Converter Module 0-100% to-10V in Bangladesh is 870৳ You can buy the PWM to Voltage Converter Module 0-100% to-10V at best price from our Website or visit any of our showrooms.
