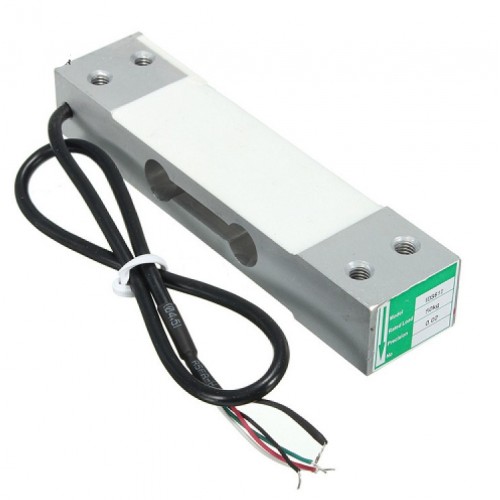

LOAD CELL 0-40KG SCALE

Applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell. CityTechBD

Specification：
Capacity: 40KG
Rated output(MV/V): 2.0±0.15
Accuracy class: C2
Maximum number of laod cell verification intervals(N max): 2000
Minimum number of laod cell verification intervals(Vmin): EMax/5000
Combined erro(%RO): <±0.030
Creep(%RO/30min): 0.03
Temperature effect on sensitivity(%RO/°C): 0.0016
Temperature effect on zero(%RO/°C): 0.003
Zero balance(%RO): 1.0
Input resistance(Ω): 402±6
Output resistance(Ω): 350±3
Insulation resistance(MΩ<50V>): 5000
Recommended excitation voltage(V): 10~15
Compensated temperature range(°C): -10~+40
Operating temperature range(°C): -35~+80
Safe overload(%RO): 150
Ultimate overload(%RO): 200
Load cell material: Aluminium
Plafform size: 350x350mm
Connecting cable: ø4.2x350mm
Method of connecting wire: Red(+),Black(-),Green(+),White(-) CityTech BD
