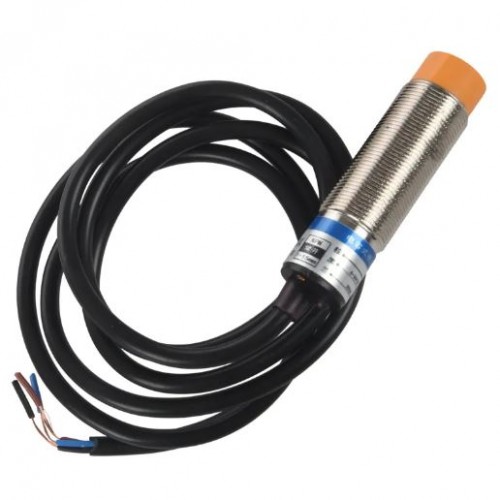

DC 6-36V 300mA LJC18A3-H-Z/BX 1-10mm Capacitance Switch NPN NO

DC 6-36V 300mA LJC18A3-H-Z/BX 1-10mm Capacitance Switch NPN NO in Bangladesh (BD)

Product details of  6-36V 300mA LJC18A3-H-Z/BX 1-10mm Capacitance Switch NPN NO DC

• LJC18A3-H-Z/BX 1-10mm Capacitance Proximity Sensor Switch NPN NO DC 6-36V 300mA
• : Capacitance Sensor;Output Type: NPN NO(Normal Open);Diameter of Head: 18mm;Detecting Distance: 1-10mm
• Detecting Object: Metal or Nonmetal Material;Supply Voltage: DC 6-36V;Current Output: 300mA;Response Frequency: 100Hz
• Size: 7.5 x 4cm/3" x 1.6" (L*Max. Dia);Material: Plastic, Alloy. CityTech BD

Product Name: Capacitive Proximity Switch

Switch Appearance Type: Cylinder

Type : Capacitance Sensor

Output Type: NPN NO(Normal Open)

Diameter of Head: 18mm

Detecting Distance: 1-10mm
Detecting Object: Metal or Nonmetal Material

Supply Voltage: DC 6-36V

Current Output: 300mA

Response Frequency: 100Hz
Size: 7.5 x 4cm/3" x 1.6" (L*Max. Dia)

Material: Plastic, Alloy CityTech BD

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal. As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc.  It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial. CityTech BD

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Package Includes:

1 x Capacitive Proximity Switch. CityTech BD
