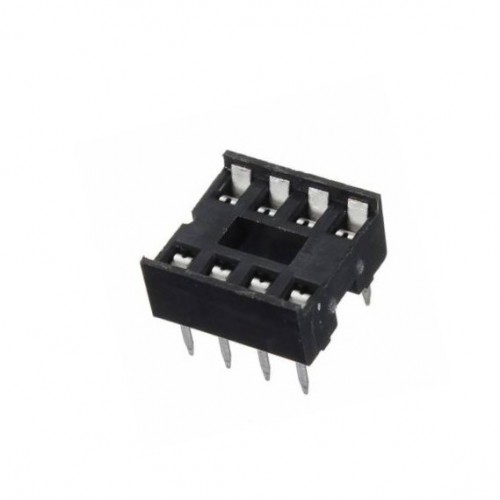

IC Base sockets 8 pin
Regular Price:
5৳
Status:
In Stock
Model: CTBD-1501
- Description
- Questions (0)
- Reviews (0)
Description
8 Pin IC Socket base adaptor is an 8 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder. CityTechBD
The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming. CityTechBD
Features:
- 8 pins.
- JDEC compliant.
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
| General Specification | |
| Current Handling Capacity (A) | 1 |
| No. of Contact Points | 8 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature Range (°C) | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Insertion Force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm) | 10 |
| Width (mm) | 10 |
| Height (mm) | 4 |
| Weight (gm) | 1 (approx) (each) |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
CityTechBD CityTechBD CityTechBD CityTechBD CityTechBD
Package Included:
1 x IC Base sockets 8 pin
What is the price of IC Base sockets 8 pin?
The latest price of IC Base sockets 8 pin in Bangladesh is 5৳ You can buy the IC Base sockets 8 pin at best price from our Website or visit any of our showrooms.
