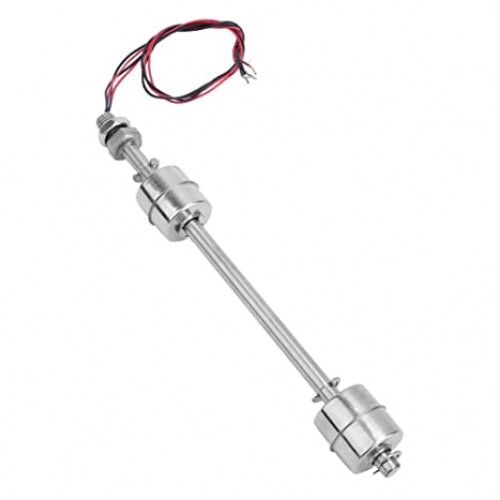

Float Switch,DC 0~110V Stainless Steel Double Ball Float Switch Water Level Controller Sensor Switch for Water Tank,Pool,Sink,Fish Tank (200mm)

• DESCRIPTION

• Material: stainless steel
• Cable length:30cm
• Float body Length:200mm
• Switching voltage: max. 220VDC
• Switching current: max. 1.5A
• Carry current: max. 3.0A CityTech BD

Specification:
Material: stainless steel
Cable length:30cm
Float body Length:200mm
Switching voltage: max. 220VDC
Switching current: max. 1.5A
Carry current: max. 3.0A CityTech BD

Feature:
1. Double float switch can be used in the water tank, ponds, tanks, fish tank, and other liquid level control (drainage or water),
do the upper and lower level alarm switch. Inside contacts are used reed switch sensitivity is very high.
2. Float ballpoint can not move in anywhere, the floating-point is fixed, up and down have circlip limit.
3. The circlip moving is not used, inside reed contacts are not moving.
4. Float switch can not directly control the pump or solenoid valve, float switch inside the reed contact current, control a large load will burn.
5. Control solenoid valves, alarms to add small relays, control water pump need to add a small relay and AC contactor. (According to the pump power equipped with the corresponding AC contactor) CityTech BD
