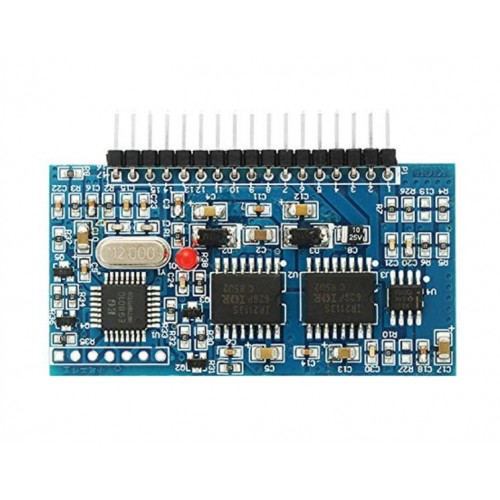

DC-AC EGS002 EG8010 SPWM Pure Sine Wave Inverter Module

DC-AC EGS002 EG8010 SPWM Pure Sine Wave Inverter Module in Bangladesh (BD)

EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two-stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead-time control circuit, range divider，soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc. CityTech BD

Note: Product Images may differ from the actual product.

Applications:

• Single-phase pure sine wave inverter
• PV Inverter
• Wind power inverter
• Uninterruptible Power Supply UPS System
• Digital generator system
• IF power
• Single-phase motor speed controller
• Single-phase inverter
• Sine wave dimmer
• Sine wave regulator
• Sine wave generator. CityTech BD

Features:

1. External 12MHz crystal oscillator
2. PWM carrier frequency 23.4KHz
3. Voltage, current, real-time temperature feedback
4. Overvoltage, Undervoltage, overcurrent and overheating protection
5. Soft-start mode pin setting the response time of 1S
6. Serial communication to set the output voltage, frequency and other parameters CityTech BD

Package Includes:

1 x DC-AC EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Board. CityTech BD
