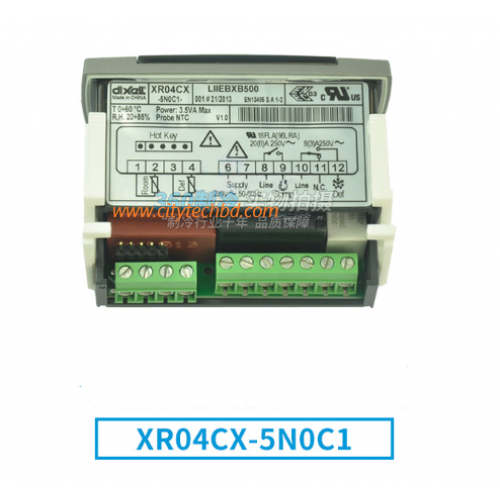

New Dixell Temperature Controller Defrost Double Output Thermostat XR04CX-5N0C1 220V

New Dixell Temperature Controller Defrost Double Output Thermostat XR04CX-5N0C1 220V Best Price in BD.

The New Dixell Temperature Controller Defrost Double Output Thermostat XR04CX-5N0C1 220V is a high-performance digital thermostat designed for precise temperature management in refrigeration units. With dual output capability, it controls both cooling and defrost functions, ensuring optimal performance for commercial and industrial applications. Built with advanced Dixell technology, it offers easy programming, reliable temperature accuracy, and durability for long-term use. Perfect for cold storage rooms, display cabinets, and food preservation systems in Bangladesh. CityTech BD

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Product Specifications:

Origin: Italy (Made By China)

Shell : ABS & Plastic

Dimensions: 32x74x50mm

Mounting Dimensions: 71x29mm

Overall protection level: IP20

Front panel protection level: IP65

Power supply: 230Vac + 10%, 50/60hz;110Vac plus or minus 10%, 50/60hz.

Power Consumption: maximum 3VA

Display: 2 red digital tubes, 14.2 mm high; Input: 1 channel NTC input

Output relay: compressor SPST 20(8) A, 250Vac;Defrost output: 8(3)A 250Vac

Data storage: electrically erasable electronic writing memory (EEPROM).

Maximum insulation voltage: 2500V;Grade of overvoltage: II

Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.

Relative humidity: 20~85RH% (unexposed)

Measure and control temperature range: NTC - 40 ~ 110 ° C

Resolution: 0.1 ° C or 1 ° C

Precision (at the ambient temperature of 25 ° C), plus or minus 0, 7 ° C plus or minus one

PACKAGE INCLUDES :
1x  Dixell Temperature Controller XR04CX-5N0C1. CityTechBD
