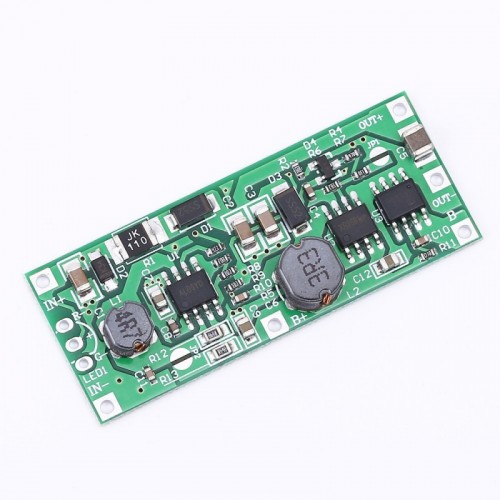

DC 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection

UPS Voltage Protection Converter Charge Discharge DC DC Charging Step Up Booster Module DC 5V-12V To 9V 12V For 18650 Lithium Battery Electronics Circuitry & Parts. CityTech BD

It is a UPS uninterruptible power supply control board. DC DC Charging Step Up Booster Module DC 5v-12v To 9v 12v For 18650 Lithium Battery UPS Voltage Protection Converter Charge Discharge. CityTech BD

Applications:

1. Ordinary power supply
2. Battery charger
3. Mobile power
4. Power conversion
5. Infrared alarm
6. Network equipment such as switches;
7. Router
8. Battery car modification

Note:

1. Its max output current is 1A and can not keep output 1A.
2. The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3. Users can install a common anode Red-Blue LED by yourself as charging indicators. Blue light indicates whether there is a load at output. Keep Red is charging. There is no battery if Red flashing. Red OFF if charged. RoboticsBD
4. Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Package Includes:

1 x DC 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection
