Arduino Mega 2560 R3

When your project starts hitting the limits of a smaller board — running out of pins, filling up memory, or needing more than one serial port — the Arduino Mega 2560 R3 is the board that solves all of those problems at once. Built on Atmel's proven ATmega2560 AVR microcontroller, this board was specifically engineered for projects that need serious I/O capacity, large program storage, and stable long-term operation. Whether you are a university student working on a final-year embedded systems project, an engineer prototyping an industrial automation controller, or a maker building a full-featured 3D printer or robotic arm, the Arduino Mega gives you the headroom to finish what you started without workarounds.

In Bangladesh's growing maker, engineering, and startup ecosystem, the arduino mega 2560 r3 has become a standard component found on university lab benches, competition robot builds, and commercial prototype rigs alike. At CityTechBD, we keep it consistently in stock because we understand that project deadlines and competition dates do not wait for restocking cycles.

Arduino Mega 2560 R3 Technical Specifications

• Microcontroller: ATmega2560

• Architecture: 8-bit AVR RISC

• Clock Speed: 16 MHz

• Operating Voltage: 5V

• Recommended Input Voltage: 7 – 12V

• Input Voltage (Absolute Limits): 6 – 20V

• Digital I/O Pins: 54 (15 support PWM output)

• Analog Input Pins: 16

• Hardware Serial Ports (UARTs): 4

• Flash Memory: 256 KB (8 KB used by bootloader)

• SRAM: 8 KB

• EEPROM: 4 KB

• DC Current per I/O Pin: 40 mA

• DC Current for 3.3V Pin: 50 mA

• USB Interface: ATmega16U2 (original) / CH340G (compatible)

• ICSP Header: Yes

• Power Jack: 2.1mm barrel jack

• Reset Button: Yes

• Board Dimensions: 101.52 mm × 53.3 mm

• Weight: ~35 g

• Arduino IDE Compatible: Yes

• Shield Compatibility: Arduino Uno, Duemilanove, and Mega shields

Power supply advice for Bangladesh users: Although the board's absolute input voltage limit is 20V, the onboard linear voltage regulator performs most efficiently and stays coolest when supplied between 7.5V and 9V. A regulated 9V 1A DC adapter with a 2.1mm barrel jack is the recommended choice for most project setups. If you are running servo motors, relay modules, and multiple sensors simultaneously from the board's 5V rail, avoid sustained 12V input — the additional voltage drop across the regulator produces heat that accumulates in warm indoor environments and reduces component lifespan over time.

Why the Arduino Mega 2560 R3 Is the Right Board for Your Project

The Arduino Mega is not simply a larger version of the Uno. It is a fundamentally different tool that makes entire categories of projects practical to build. Here is what the key hardware differences mean for real projects:

• 54 Digital I/O Pins: You can drive multiple servo motors, relay modules, LCD displays, push buttons, status LEDs, and buzzer outputs simultaneously — all without using a pin expander IC. This is critical for robotic arm control, automated production line simulators, and any project where pin count is the binding constraint.
• 16 Analog Input Pins: Read temperature sensors, moisture sensors, gas sensors, pressure sensors, and light sensors all at once on a single board. No analog multiplexer needed for most multi-sensor environmental monitoring builds.
• 4 Hardware UARTs: Communicate with a GSM/GPRS module, a GPS receiver, a Bluetooth module, and a display serial interface simultaneously — all using dedicated hardware serial ports with no timing conflicts. On the Uno, you only have one hardware UART, forcing you to use software serial for additional devices, which causes speed and reliability issues.
• 256KB Flash Memory: Load multiple large libraries at once — MQTT for IoT communication, sensor driver libraries, PID control algorithms, SD card writing functions — without hitting the storage ceiling that forces sketch simplification on smaller boards.
• Full Arduino IDE Compatibility: If you already write sketches for the Uno, they will upload and run on the Mega 2560 without any rewriting. The same programming environment, the same syntax, the same workflow.
• Shield Compatibility: The RAMPS 1.4 shield — the most popular 3D printer controller shield — mounts directly on the Mega 2560. Most Arduino shields designed for the Uno also work on the Mega's matching header rows.

Common Project Applications of the Arduino Mega in Bangladesh

The following are real-world applications where engineers, students, and makers across Bangladesh regularly use the arduino mega 2560 r3:

• Multi-axis robotic arms and pick-and-place systems
• 3D printer controller boards using the RAMPS 1.4 shield
• CNC router and laser engraver motion control
• Smart agriculture — automated irrigation and soil monitoring systems
• Industrial conveyor belt and process automation prototypes
• Multi-sensor home automation and smart building controllers
• IoT gateways connecting multiple sensor nodes to cloud platforms
• University final-year embedded systems and mechatronics projects
• Line follower robots and sumo robots for engineering competitions
• Automated water quality monitoring for aquaculture farms

To build any of these projects completely, browse our full Arduino and Robotics Components collection where you will find compatible motor driver modules, sensor kits, relay boards, LCD displays, and communication modules — all available for combined ordering with fast delivery across Bangladesh.

Original Arduino Mega vs. CH340 Compatible Version — What to Buy

When searching for the arduino mega price in bangladesh, you will find two main versions available in the local market. Both run the same ATmega2560 microcontroller and are fully compatible with the Arduino IDE. The difference lies in the USB communication chip and overall build quality. Here is a clear comparison:

Comparison: Original vs. Compatible Clone

• USB Communication Chip

  • Original (ATmega16U2): ATmega16U2 (official Atmel chip)

  • Compatible Clone (CH340G): CH340G (third-party USB chip)

• Driver Installation

  • Original (ATmega16U2): Plug-and-play on Windows, Mac, and Linux

  • Compatible Clone (CH340G): Requires CH340 driver on Windows

• PCB Build Quality

  • Original (ATmega16U2): ENIG (gold-plated) finish, premium FR4

  • Compatible Clone (CH340G): Standard HASL finish, acceptable quality

• Long-term Reliability

  • Original (ATmega16U2): Higher — suited for deployed and production systems

  • Compatible Clone (CH340G): Good — suited for learning and prototyping

• Price Range in BD

  • Original (ATmega16U2): BDT 1,500 – 1,800

  • Compatible Clone (CH340G): BDT 1,350 – 1,500

Both variants are programmed identically through the Arduino IDE, and both run the same sketches without modification. If you are a student building a project for a competition or assignment, the CH340 version is a practical choice. If you are building something that will run continuously in a deployed environment or needs guaranteed driver compatibility across different computers, the original ATmega16U2 version is the right investment. At CityTechBD, both variants are clearly labeled on their product listings so you always know exactly what you are ordering.

Why Buy Your Arduino Mega 2560 R3 from CityTechBD?

There are multiple places to find the arduino mega 2560 price in bd online. Here is why engineers, students, and makers consistently choose CityTechBD:

• Genuine, Tested Products: Every board we ship is sourced from verified distributors and passes a basic functionality check before dispatch. You receive a working board, not a listing gamble.
• Transparent Product Labeling: We clearly distinguish between the original ATmega16U2-based board and the CH340 compatible version. No misleading product names. No surprises when the box arrives.
• Fast Delivery Across Bangladesh: Orders placed before 2:00 PM on business days are dispatched the same day. Dhaka deliveries typically arrive within 24 hours. Nationwide delivery to Chittagong, Sylhet, Rajshahi, Khulna, and all other districts takes 2 to 4 business days via SA Paribahan, Sundarban Courier, or Pathao.
• Dedicated Technical Support: Our technical team is available via phone, WhatsApp, and email to help you with driver installation, wiring questions, and project troubleshooting. We do not disappear after the sale.
• Dead on Arrival Replacement Policy: If your board arrives non-functional, we replace it. Contact us within 3 days of delivery with a short video showing the issue and we handle the rest.
• Trusted by the BD Engineering Community: Thousands of projects across Bangladesh have been built using components sourced from CityTechBD, from university robotics labs to startup prototyping benches.
• Multiple Payment Options: Pay via bKash, Nagad, Rocket, bank transfer, or cash on delivery for orders within Dhaka — whichever is most convenient for you.

Need compatible accessories for your build? Visit our robotics and microcontroller components category to find motor drivers, sensor modules, display units, power supplies, and jumper wires — all sourced and stocked for the Bangladeshi maker community.

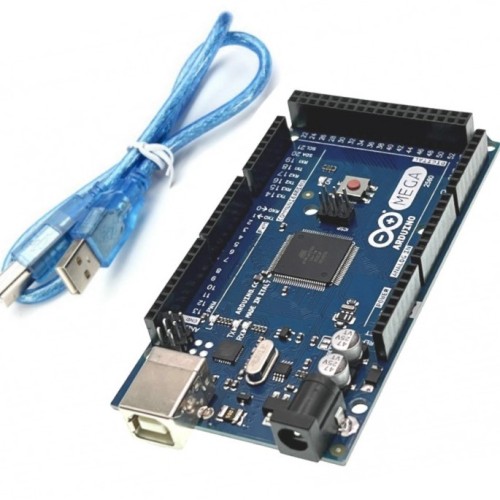

Package Includes

• 1 × Arduino Mega 2560 R3 Board
• 1 × USB Type-B Cable
