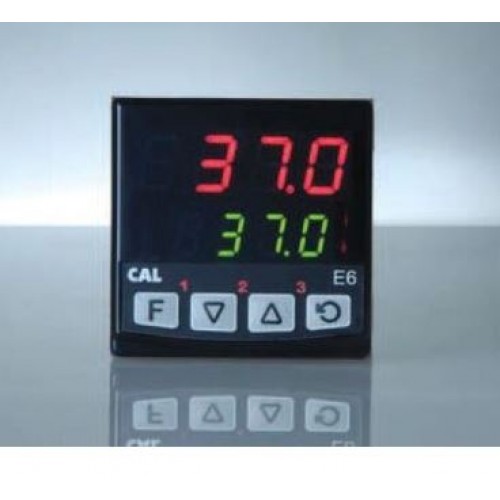

WEST CAL E6C Temperature & Process Controller

WEST CAL E6C Temperature & Process Controller in Bangladesh (BD)

The markets for industrial and scientific equipment demand that controllers not only provide a cost-effective and compact solution but also add-value to the overall competitive characteristics of the machine by offering improved aesthetic design or enhanced functions & diagnostics. The E6C economy controller has been designed to encompass these requirements by a global market leader in temperature and process control products. CityTech BD

Products Specifications

CAL E6C Temperature & Process Controller

-Single loop temperature / process controller

-1/16 DIN (48 x 48mm) & 1/8 DIN (96 x 48mm)

-Profiler function – 2 programs x 16 segment

-70mm depth behind panel

-Universal Input & 2 or 3 Outputs

Features

Control Types : Full PID with Pre-tune, manual tuning, or On-Off control, Heat Only or Heat & Cool

Output Configuration : Output 1 & 2; Relay or SSR drive. Output 3; Relay, SSR drive, Linear DC (mA/V), RS485 Comms

HMI : 4 button operation, dual 4 digit 10mm & 8mm high LED displays, optional choice of colours (Red/Red, Red/Green), plus 3 LED output indicators. Function button: Profiler Control (Run, Hold, Stop, Reset) or Auto / Manual control (user defined). CityTech BD

Package Includes :

1 x WEST CAL E6C Temperature & Process Controller. CityTech BD
