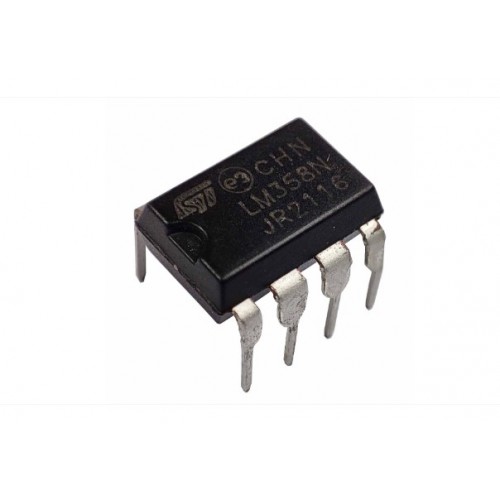

LM358 OPAMP

These circuits consist of two independent, high gain, internally frequency compensated which were designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage.Application areas include transducer amplifiers,dc gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems.

For example,these circuits can be directly supplied with the standard +5V which is used in logic systems and will easily provide the required interface electronics without requiring any additional power supply. CityTech BD

• Supply Voltage:±16 or 32 Volt
• Input Voltage:-0.3V to +32V
• Power Dissipation:500mW
• Bandwidth:1.1 MHz
• Suppy Current:50mA
• Operating Free air temperature range:0 to+70°C
