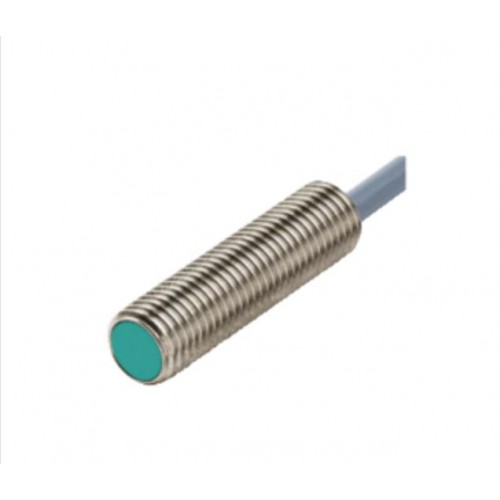

Inductive Sensor NBB2-8GS40-E2-5M-PUR

General Specifications

Switching function

Normally open (NO)

Output type

PNP

Rated operating distance

2 mm

Installation

flush

Output polarity

DC

Assured operating distance

0 ... 1.62 mm

Actuating element

mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
8 mm x 8 mm x 1 mm

Reduction factor rAl

0.2

Reduction factor rCu

0.1

Reduction factor r304

0.55

Reduction factor rBrass

0.25

Output type

3-wire

Operating voltage

5 ... 30 V

Switching frequency

0 ... 6000 Hz

Hysteresis

typ. 5%

Reverse polarity protection

reverse polarity protected

Short-circuit protection

pulsing

Voltage drop

≤ 1.5 V

Operating current

0 ... 100 mA

Off-state current

0 ... 0.2 mA

No-load supply current

≤ 10 mA

Time delay before availability

≤ 100 ms

Switching state indicator

LED, yellow
