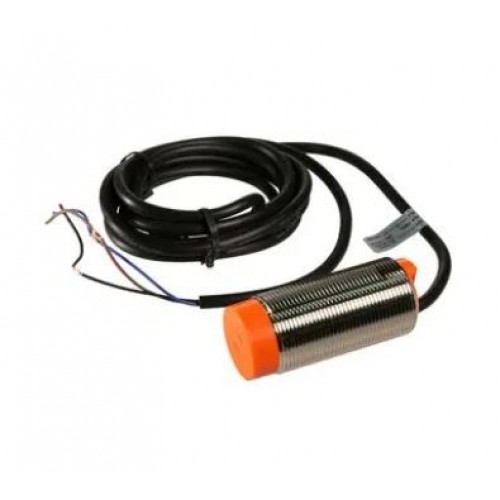

CR30-15DP Autonics Proximity Sensor (Capacitive Sensor)
Key Features
- Model: CR30-15DP
- Brand: Autonics
- Voltage: 12-24V DC
- Accuracy: High Detection Accuracy with 15mm Sensing Distance
- Connectivity: 3-Wire DC PNP Output Connection
- Description
- Questions (0)
- Reviews (0)
Description
CR30-15DP Autonics Proximity Sensor (Capacitive Sensor) in Bangladesh (BD)
The CR30-15DP is an electric Capacitive Proximity Sensor features a long life cycle and high reliability. Comes with a nickel-plated brass case and nut, nickel-plated steel washer, heat-resistant ABS sensing part and heat-resistant ABS, general cable (black) L polyvinyl chloride PVC sensing part. It offers integrated surge protection circuit, integrated reverse polarity protection circuit and red LED status indication. It is easy to adjust of the sensing distance with sensitivity adjuster and easy to control of level of position.CityTech BD
Key Specifications
| Parameter | Specification |
|---|---|
| Brand | Autonics |
| Model | CR30-15DP |
| Sensor Type | Capacitive Proximity Sensor |
| Housing Size | M30 Cylindrical Threaded Body |
| Sensing Distance | 15 mm |
| Output Type | PNP Normally Open (NO) |
| Wiring | DC 3-Wire |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Max. 15 mA |
| Response Frequency | 50 Hz |
| Standard Sensing Target | 50 × 50 × 1 mm (Iron) |
| Hysteresis | Max. 20% of sensing distance |
| Protection Rating | IP65 |
| Housing Material | Nickel-Plated Brass |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Operating Humidity | 35% to 95% RH |
| Weight | Approx. 206 g (243 g with packaging) |
| Indicator | Red LED Status Indicator |
| Sensitivity Adjustment | Adjustable via built-in sensitivity adjuster |
Features
Detects metallic and non-metallic materials such as iron, metal, plastic, water, stone, wood, and powders.
Long service life and high reliability.
Built-in reverse polarity and surge protection circuits.
Adjustable sensing distance for precise detection.
Red LED operation indicator for easy monitoring.
Suitable for level detection, position control, packaging machines, conveyors, and industrial automation systems.
Rugged nickel-plated brass housing with IP65 protection.
Applications
Material level sensing
Object detection on conveyor systems
Packaging machinery
Industrial automation
Position control systems
Liquid and powder detection
Package Includes:
1 x CR30-15DP Autonics Proximity Sensor (Capacitive Sensor).CityTechBD
What is the price of CR30-15DP Autonics Proximity Sensor (Capacitive Sensor)?
The latest price of CR30-15DP Autonics Proximity Sensor (Capacitive Sensor) in Bangladesh is 3,849৳ You can buy the CR30-15DP Autonics Proximity Sensor (Capacitive Sensor) at best price from our Website or visit any of our showrooms.
