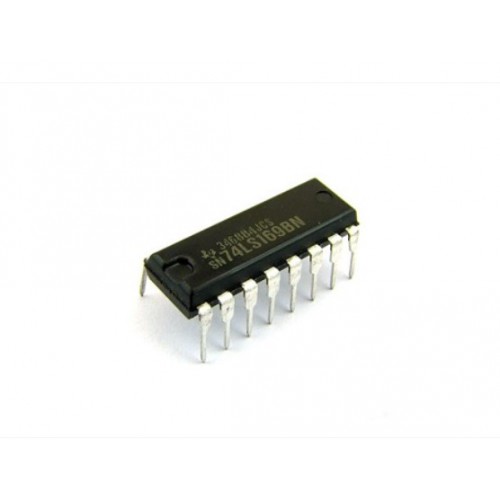

74169 Synchronous Counter

The SN54/74LS168 and SN54/74LS169 are fully synchronous 4-stage up/down counters featuring a preset capability for programmable operation,carry lookahead for easy cascading and a U/ D input to control the direction of counting. The SN54/74LS168 counts in a BCD decade (8, 4, 2, 1)sequence, while the SN54/74LS169 operates in a Modulo 16 binary sequence. All state changes, whether in counting or parallel loading, are initiated by the LOW-to-HIGH transition of the clock. CityTech BD

Features

• Low Power Dissipation 100 mW Typical

• High-Speed Count Frequency 30 MHz Typical

• Fully Synchronous Operation

• Full Carry Lookahead for Easy Cascading

• Single Up/Down Control Input

• Positive Edge-Trigger Operation

• Input Clamp Diodes Limit High-Speed Termination Effects
