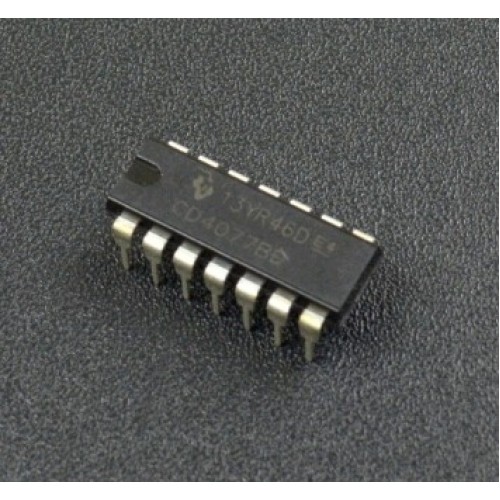

4077 XNOR Gate

The CD4077 contains four independent Exclusive NOR gates.The CD4077 provide the system designer with a means for direct implementation of the Exclusive NOR functions, respectively. CityTech BD

Applications

• Logical Comparators

• Parity Generators and Checkers

• Adders/Subtractors

Specification:

• DC Supply Voltage Range, (VDD): -0.5V to +20V (Voltage Referenced to VSS Terminals)

• Input Voltage Range, All Inputs:-0.5V to VDD +0.5V
• DC Input Current, Any One Input :±10mA
• Operating Temperature Range: -55oC to +125oC
• Package Types D, F, K, H
• Storage Temperature Range (TSTG) :-65°C to +150°C
• Lead Temperature (During Soldering): +265°C
